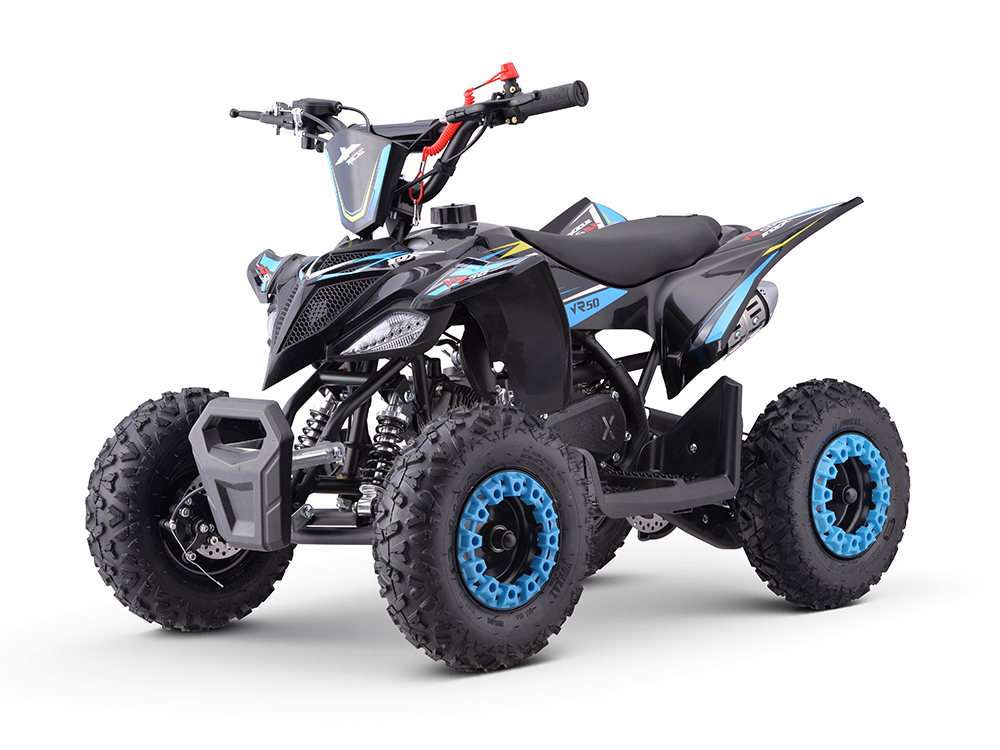

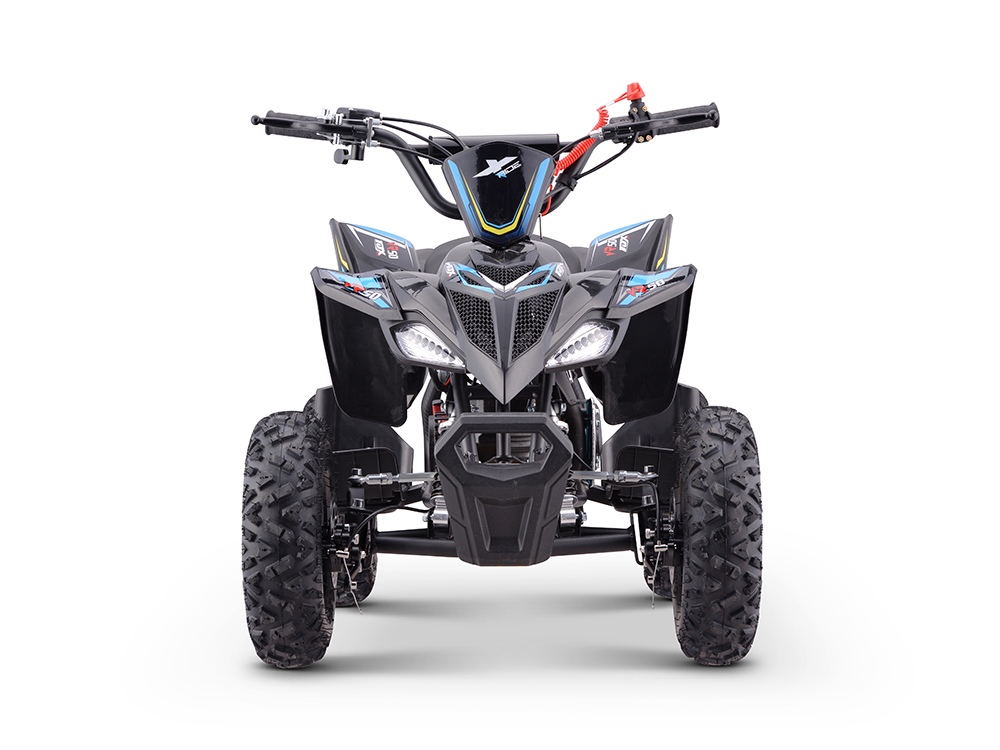

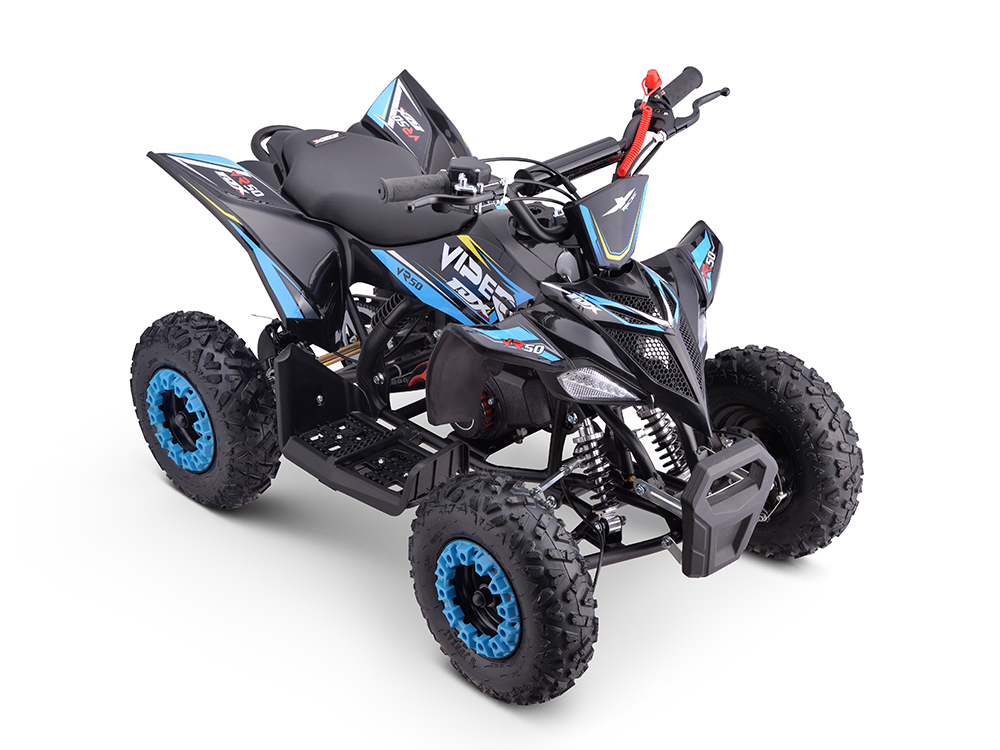

QD06

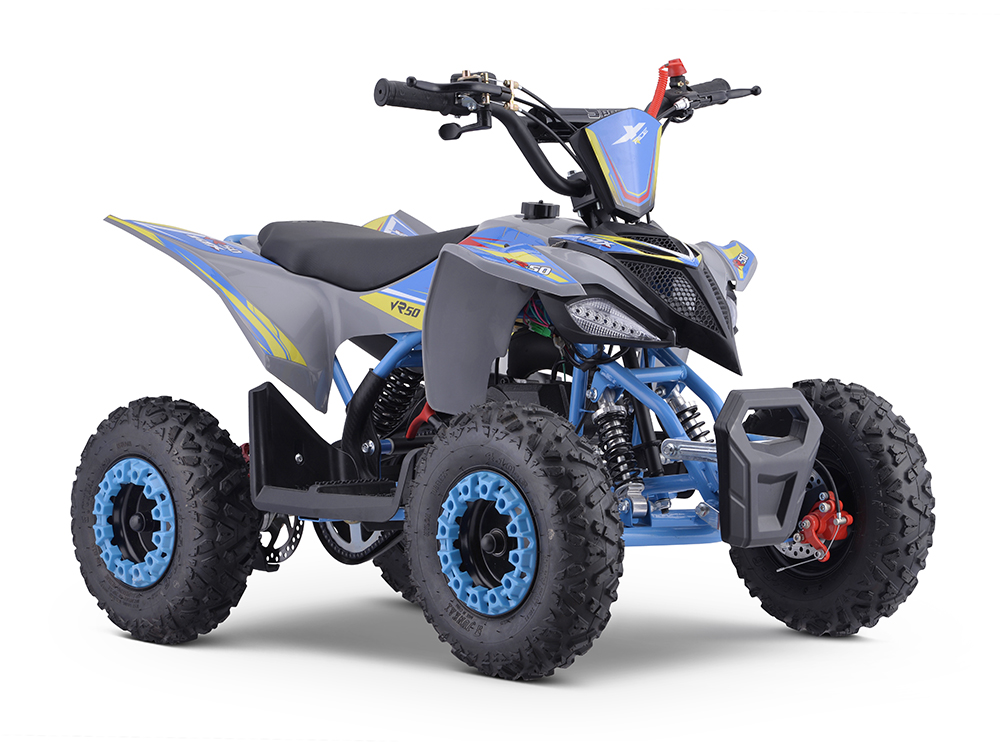

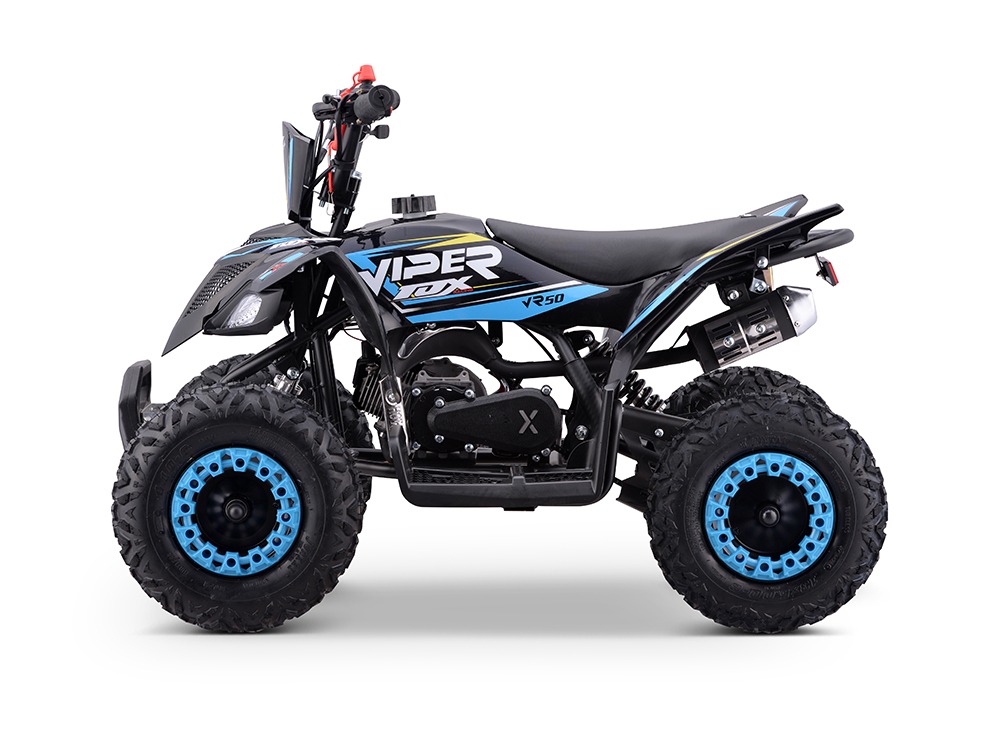

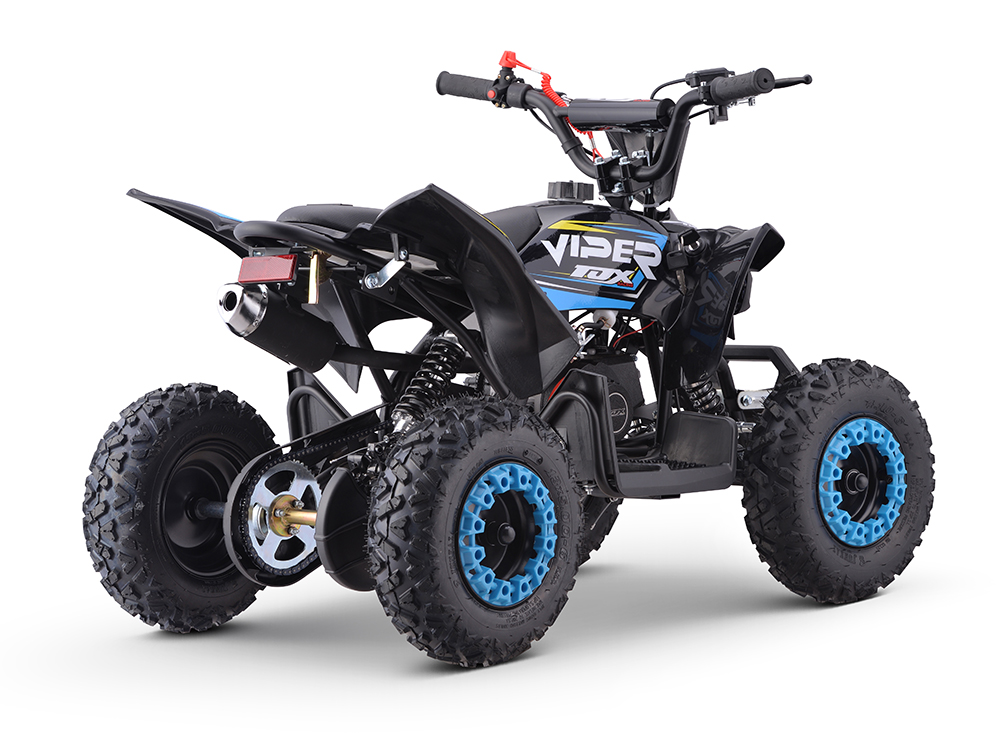

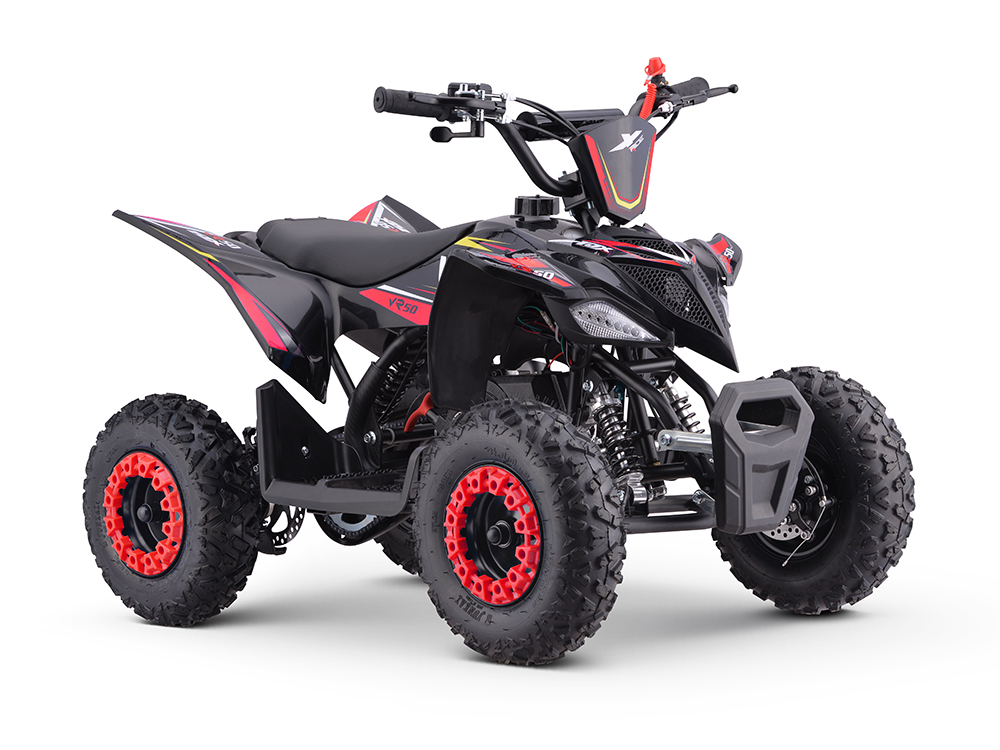

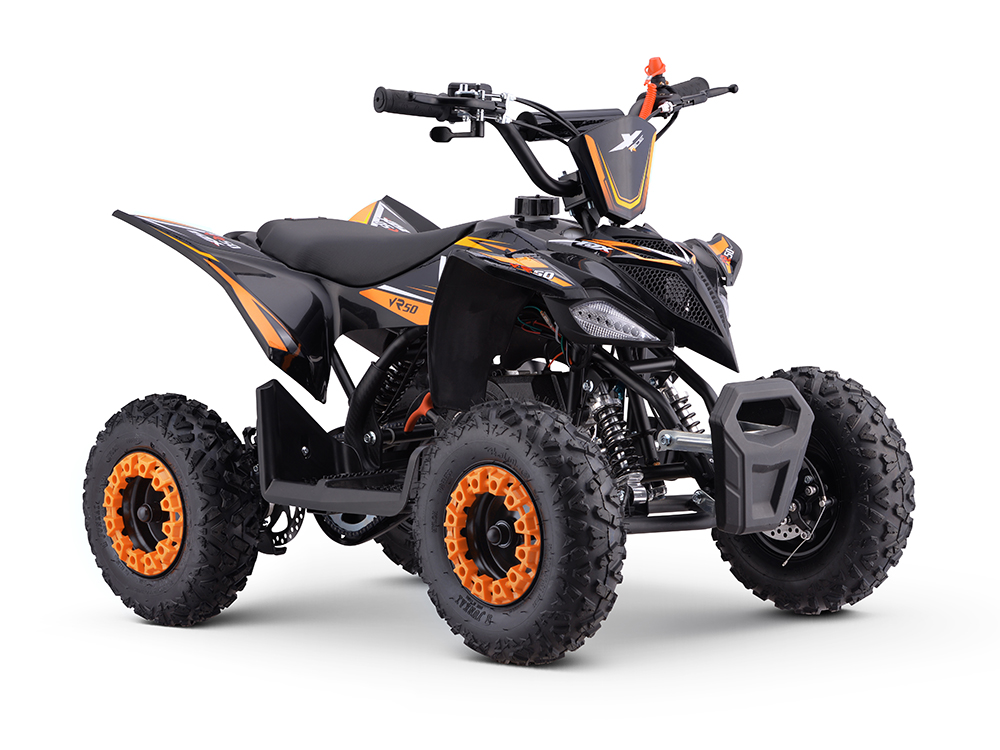

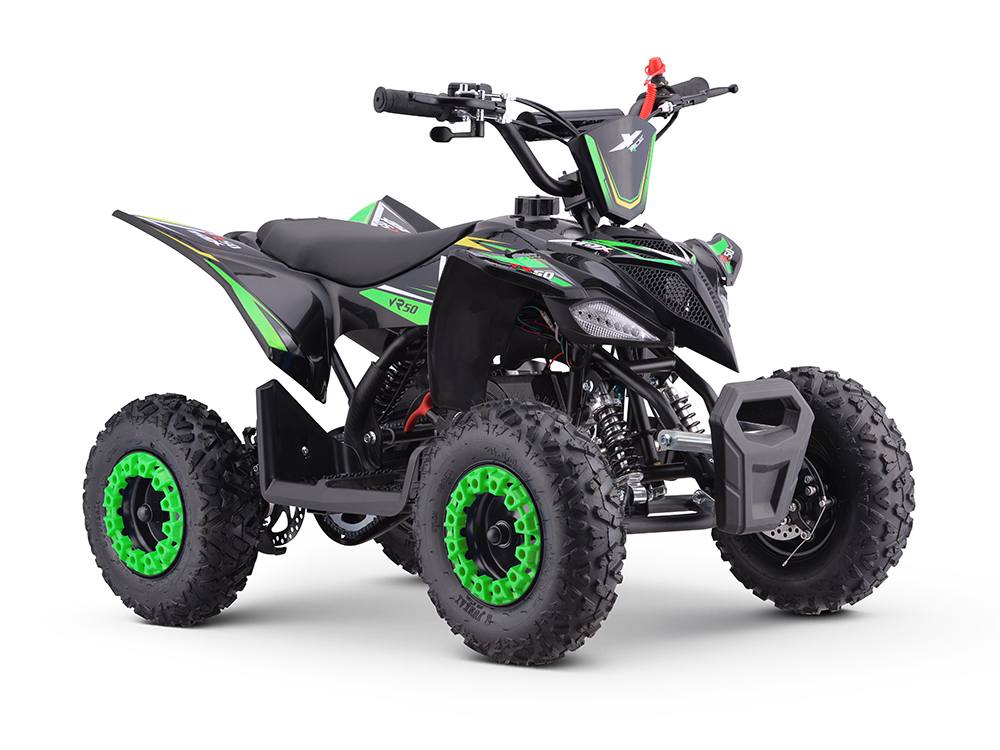

2-Stroke Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 1 cylinder, 2 stroke, air cooled, 49cc |
| Dispacement | 44ml |
| Compression ratio | 7.5:1 |
| Max. power(kw/r/mim) | 1.50/7500 |
| Max. torque(N.m/r/min) | 2.03/3600 |
| Starting system | pull start ( Option: electric start) |
| Final drive for 6' wheels | 13T / 64T, T8F# chain |
| Transmission | automatic with centrifugal clutch |
| Fuel | petrol mixed with 4% 2-stroke engine oil |

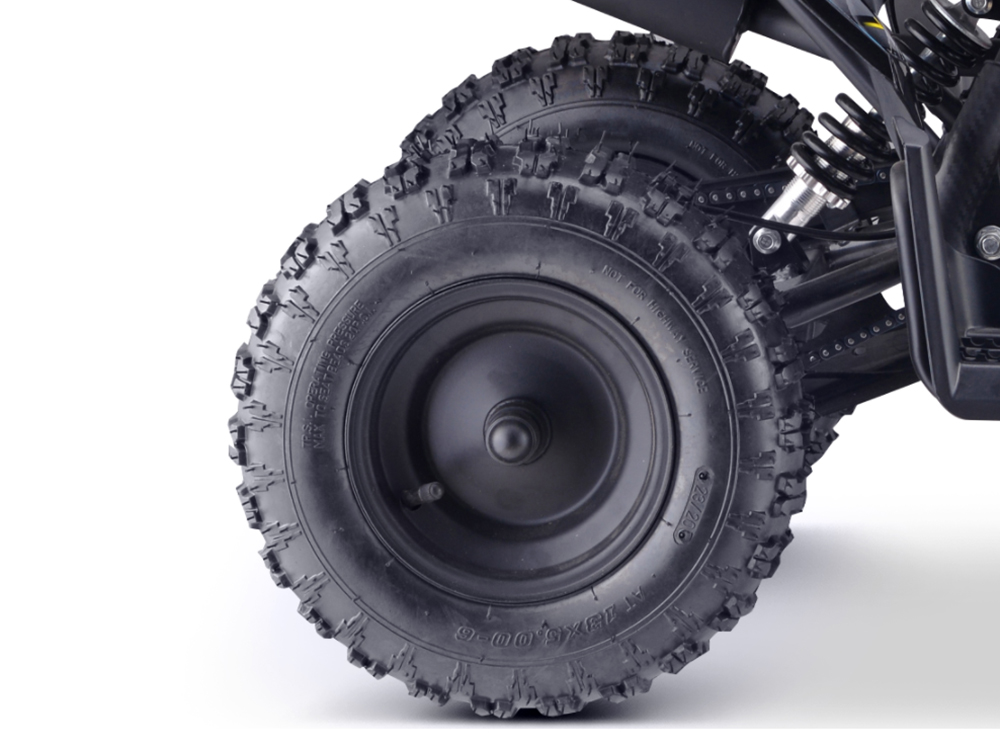

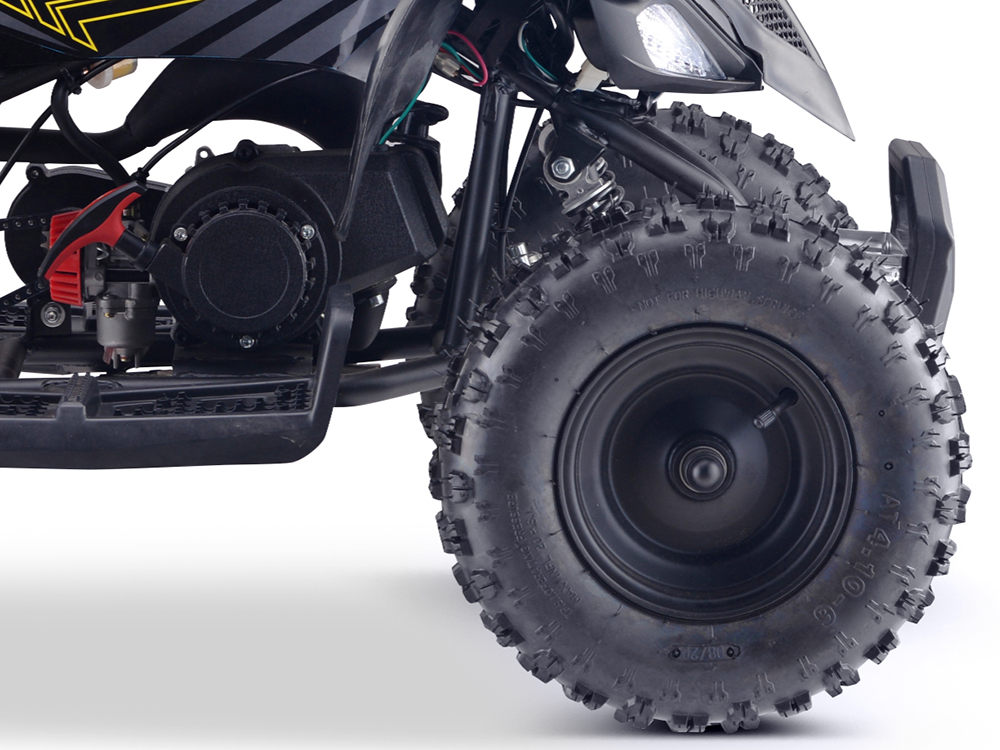

| Wheel & tires | high strength steel rim, 6" |
| Tire | front 13*4.10-6" rear 13*5.00-6 |
| Max. speed | 40kmph |
| Max load capacity | 60kgs |
| Brake system | front & rear mechanical disc brake |
| Suspension | front A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1060*605*690mm |
| Wheelbase | 700mm |
| Seat height | 450mm |
| Min ground clearance | 140mm |
| Dry weight | 34kgs |
| Package carton size | 1010*620*425mm |
| Qty/container | 100pcs/ 20ft container, 248pcs/40HQ container |
