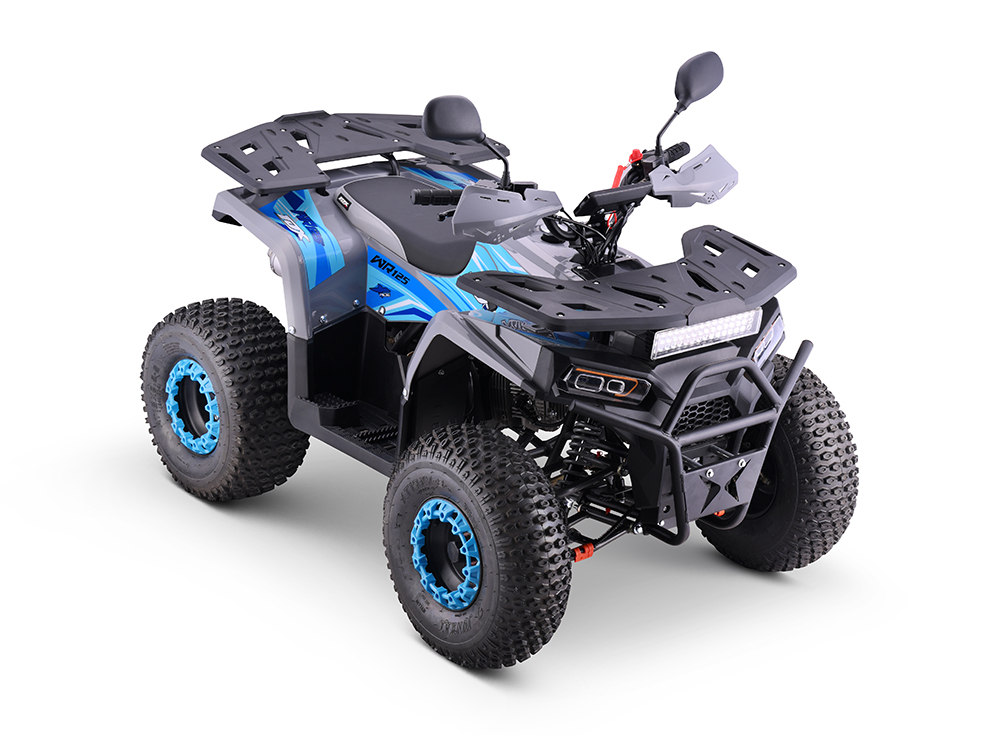

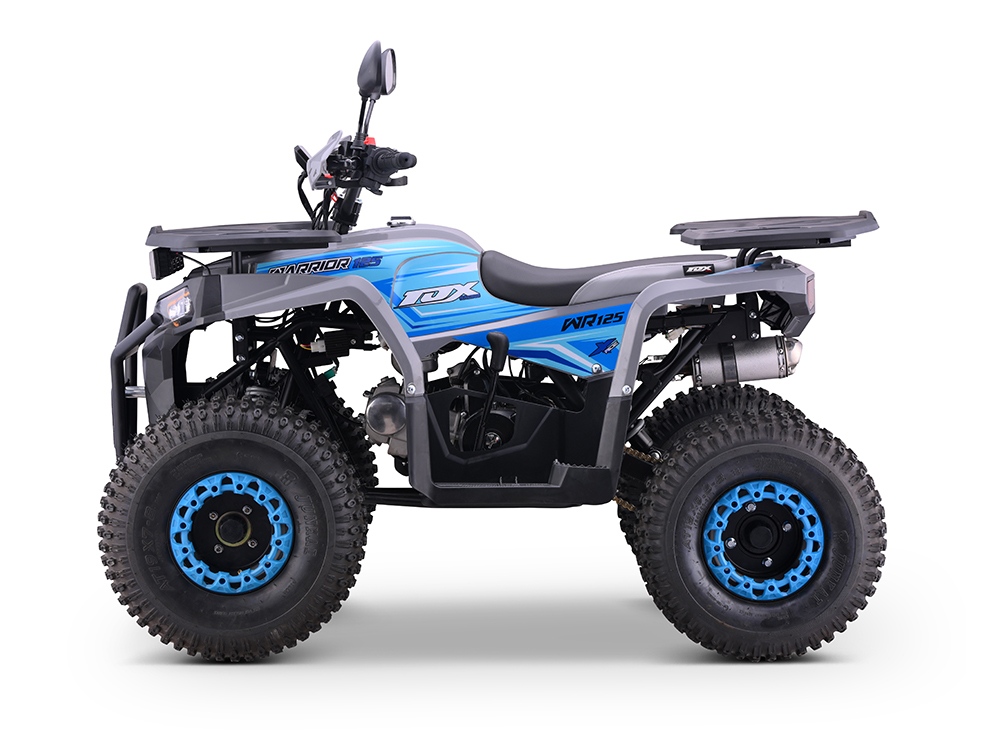

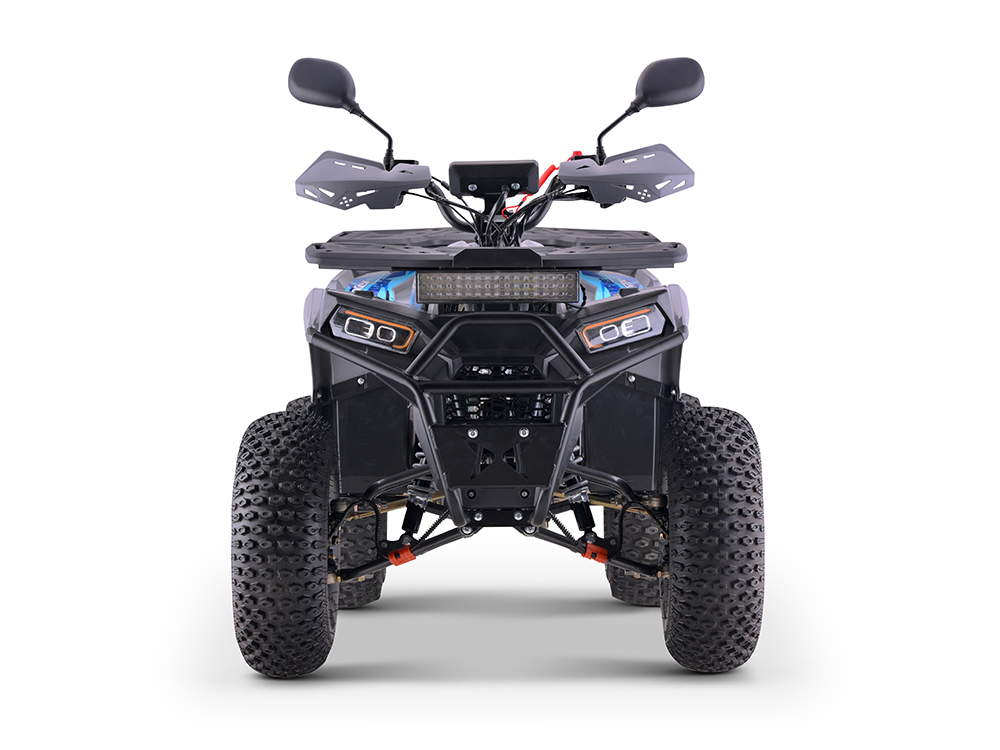

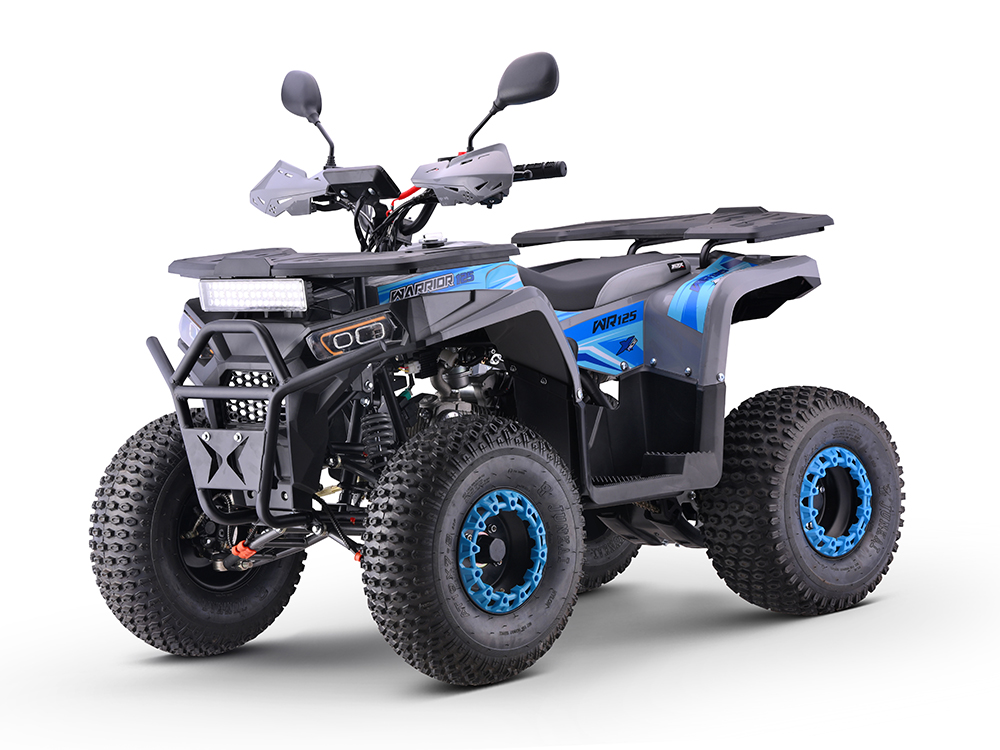

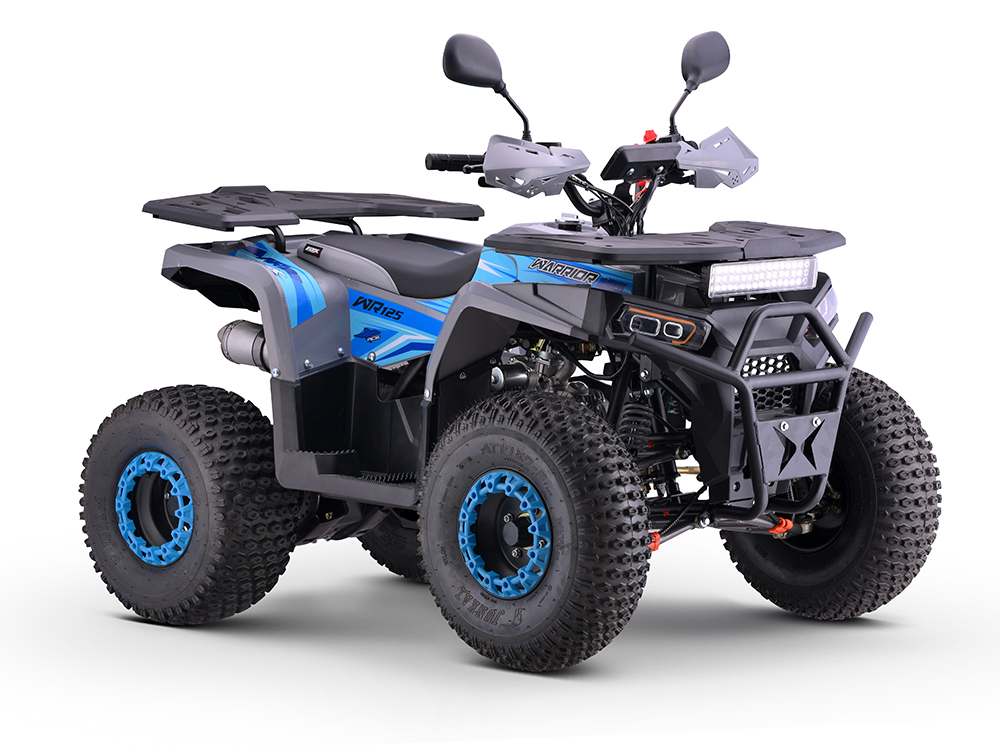

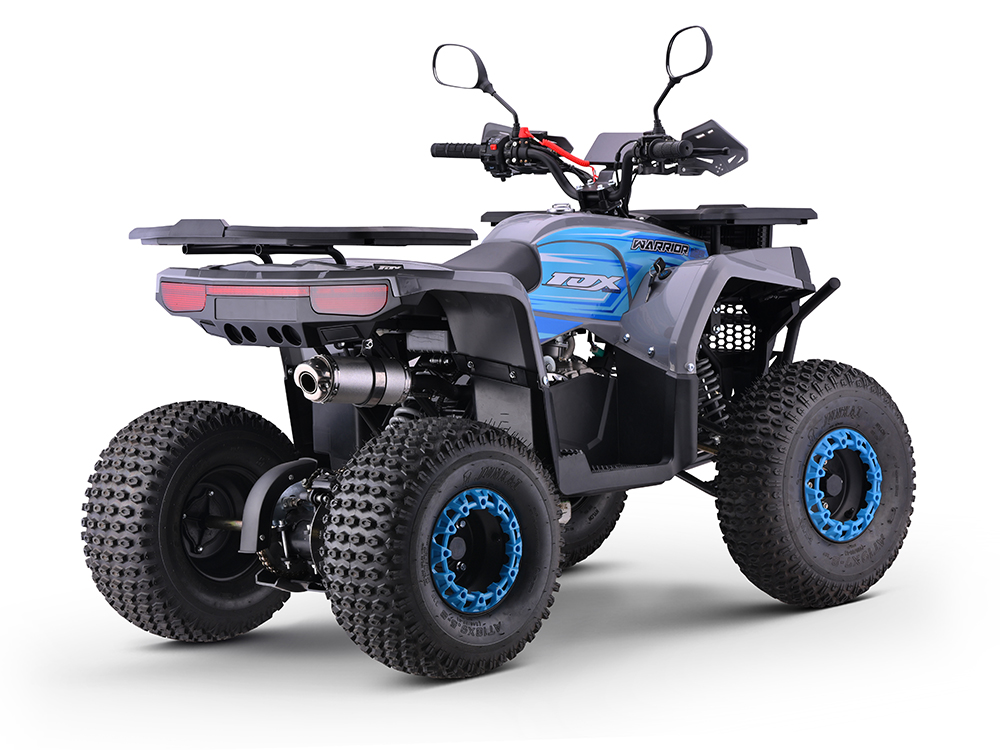

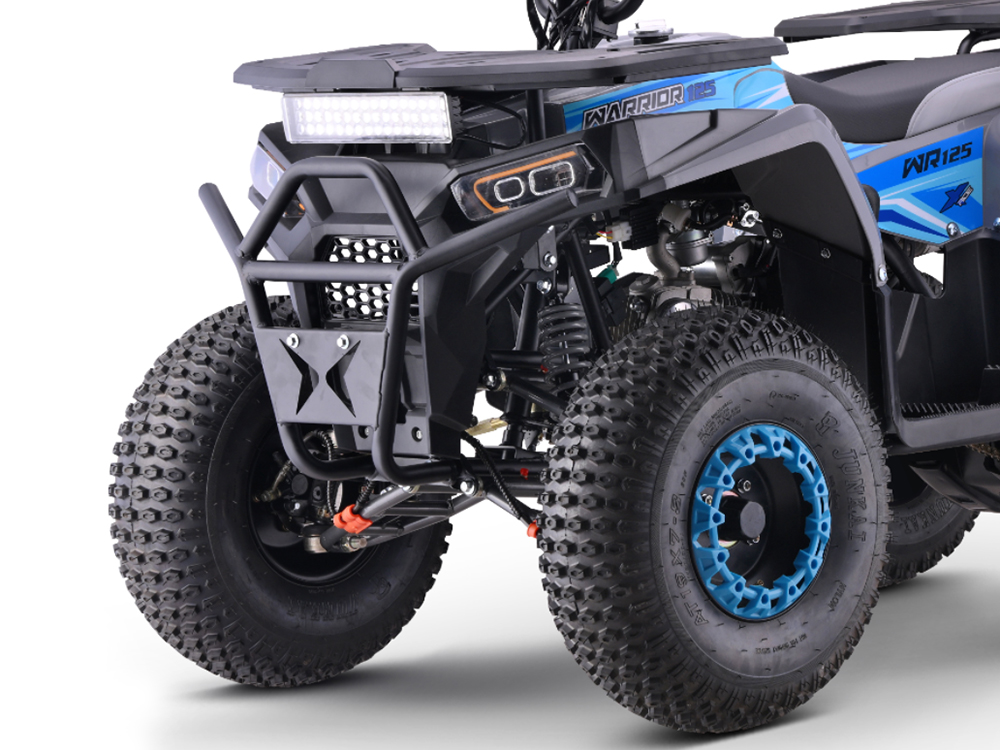

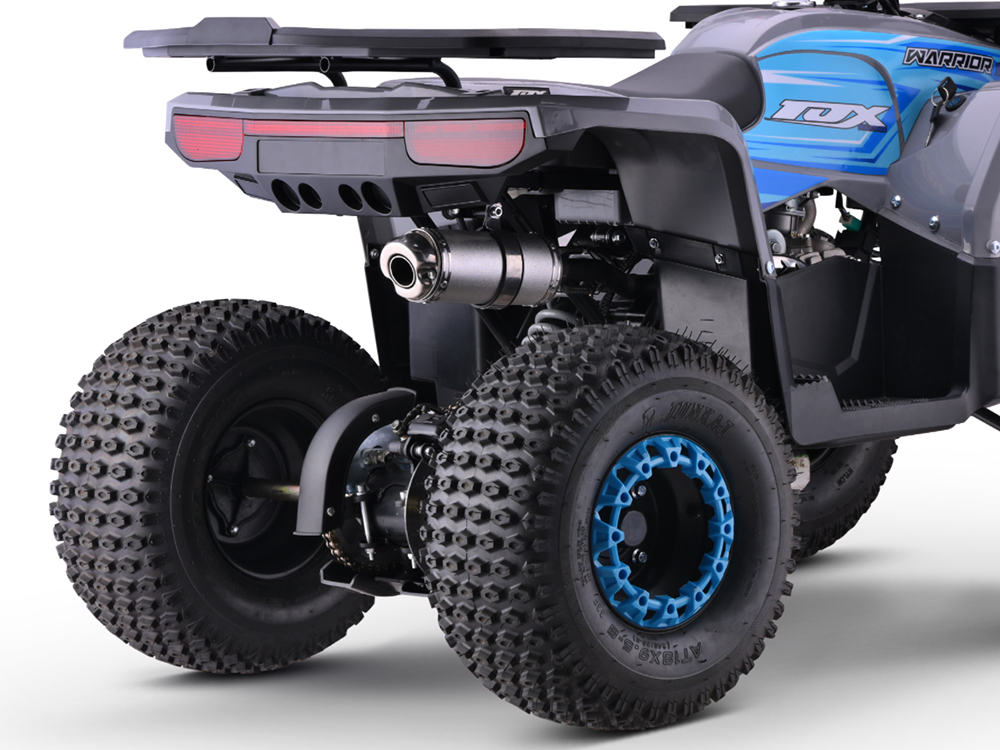

UA125
4-Stroke Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 1 cylinder, 4 stroke, air cooled, 110cc |
| Dispacement | 107ml |
| Compression ratio | 9.0:1 |
| Max. power(kw/r/mim) | 4.9/8500±500 |
| Max. torque(N.m/r/min) | 7.2/5500±500 |
| Idle speed | (1500±100)r/min |
| Transmission | Chain drive with full auto clutch |
| Final drive | 14T / 37T, 420# chain |
| Starting system | electric start only |
| Ignition | C.D.I |
| Lubrication system | pressure splash |
| Engine oil volume | 0.9L |
| Battery | 12V 5Ah |
| Wheel | high strength steel rim, 8" |
| Tire | Front & Rear 16x8-7" |

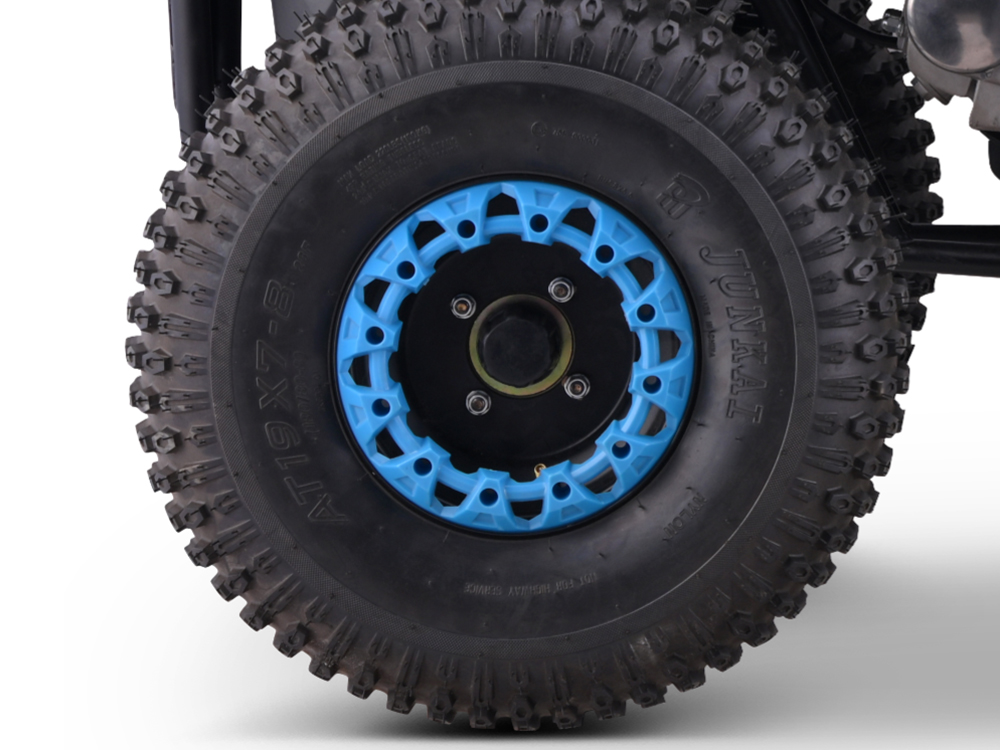

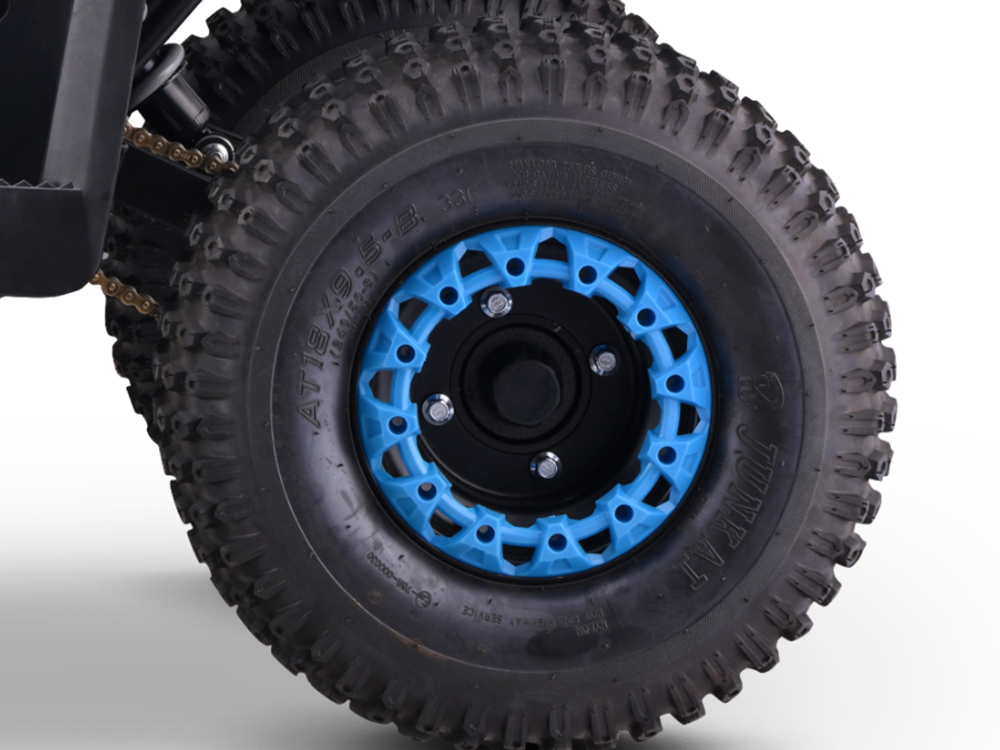

| Optional tire | Front 19x7-8" & Rear 18x9.5-8" |
| Petrol tank volume | 2.0L |
| Max. speed | 55kmph |
| Max load capacity | 90kgs |
| Brake system | front durm brake / rear hydraulic disc brake |
| Suspension | front double A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1475*980*915mm for 7" wheels 1490*990*930mm for 8" wheels |
| Wheelbase | 985mm |
| Seat height | 7"/8" wheels: 660mm / 675mm |
| Min ground clearance | 7"/8" wheels: 105mm / 110mm |
| Footrest to ground | 7"/8" wheels: 215mm / 200mm |
| Dry weight | 7"/8" wheels: 102kgs / 93kgs |
| Package carton size | 1060*620*520mm |
| Qty/container | 36pcs/ 20ft container, 100pcs/40HQ container |
