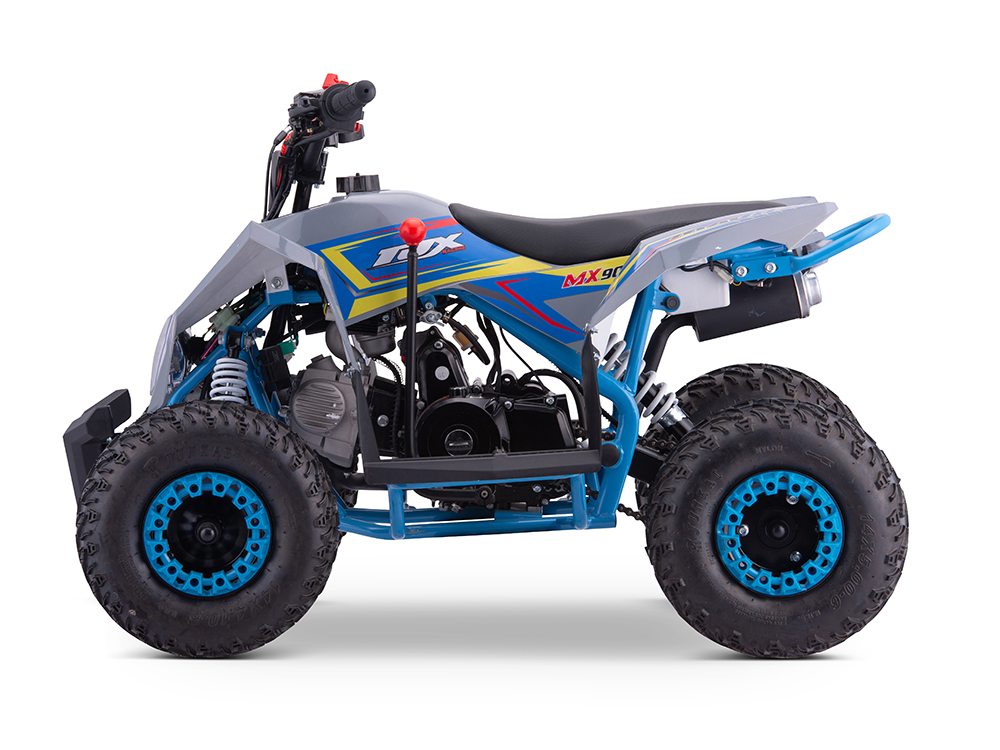

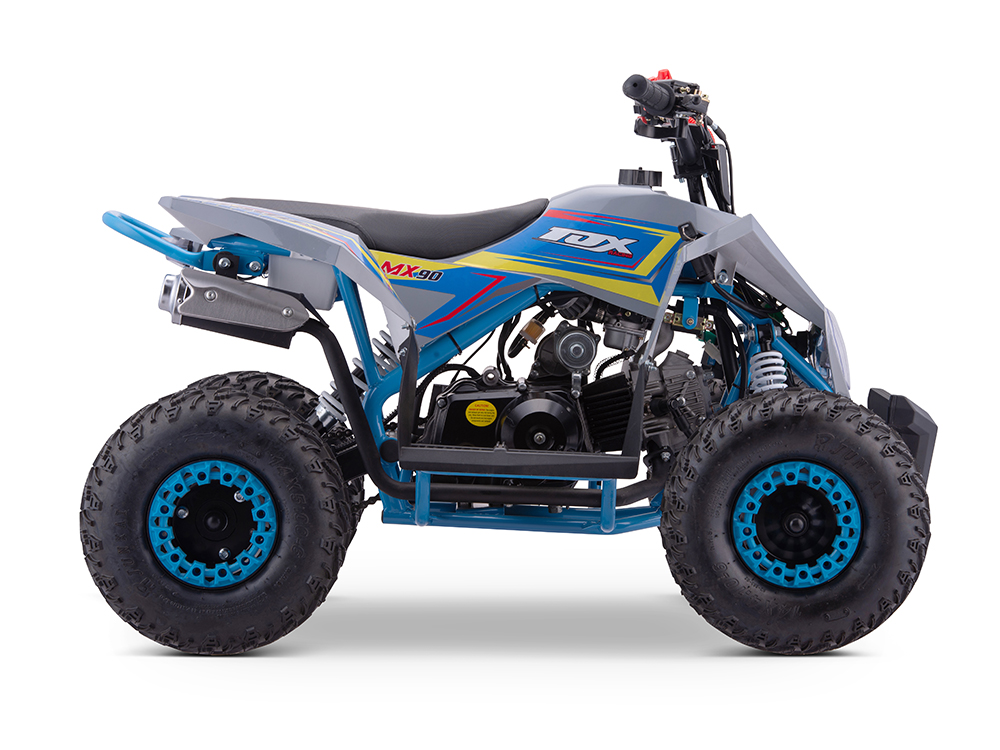

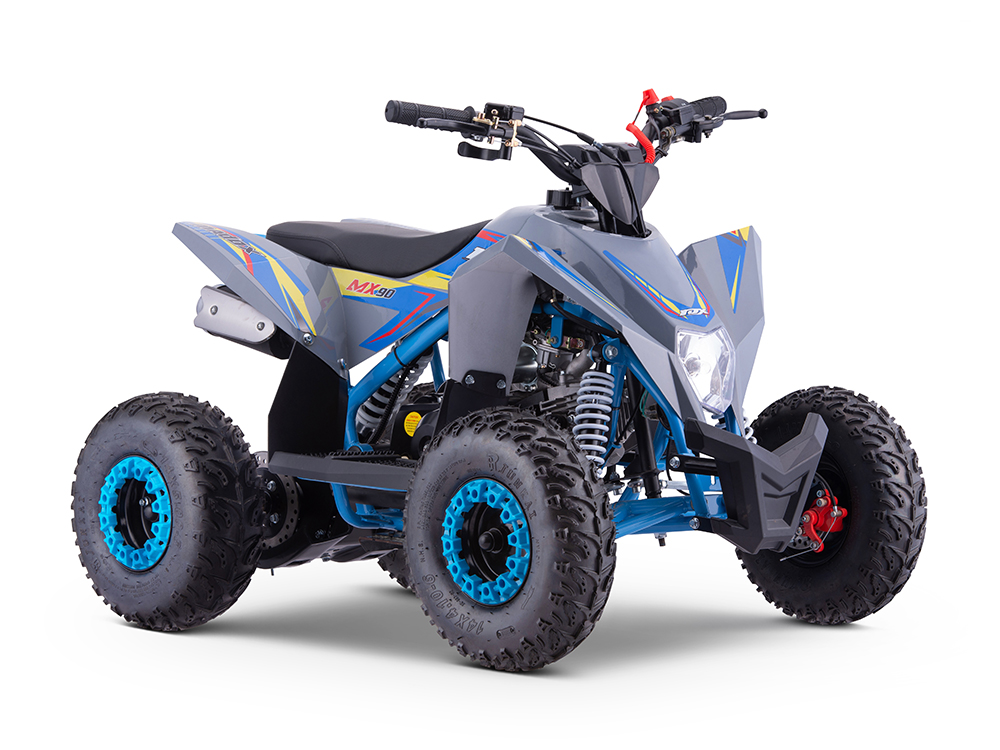

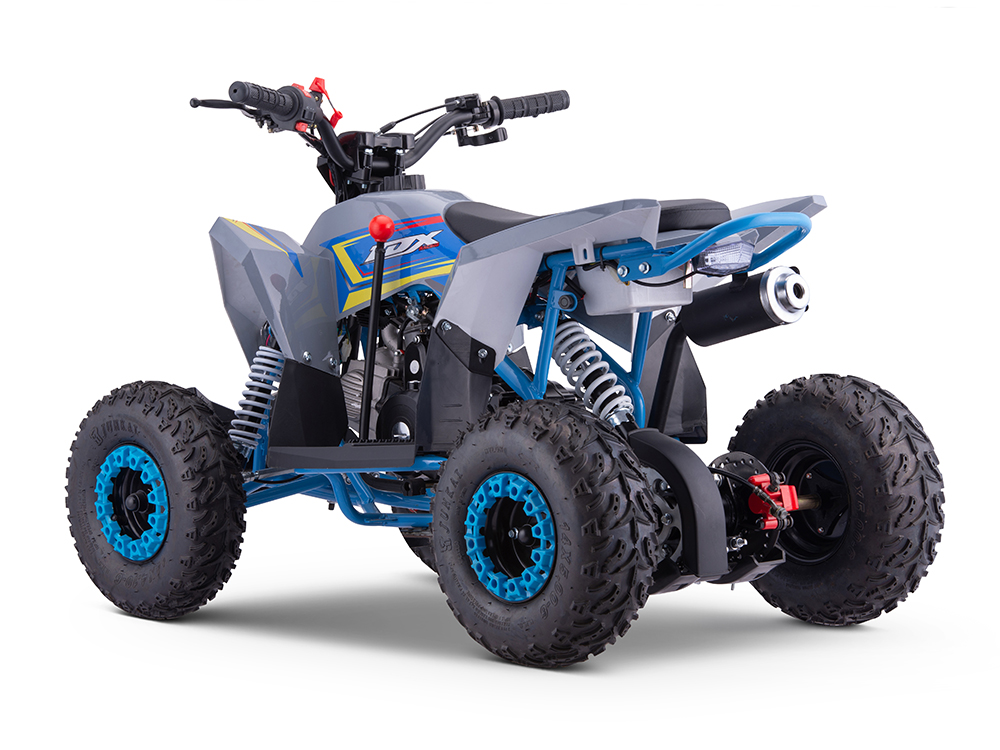

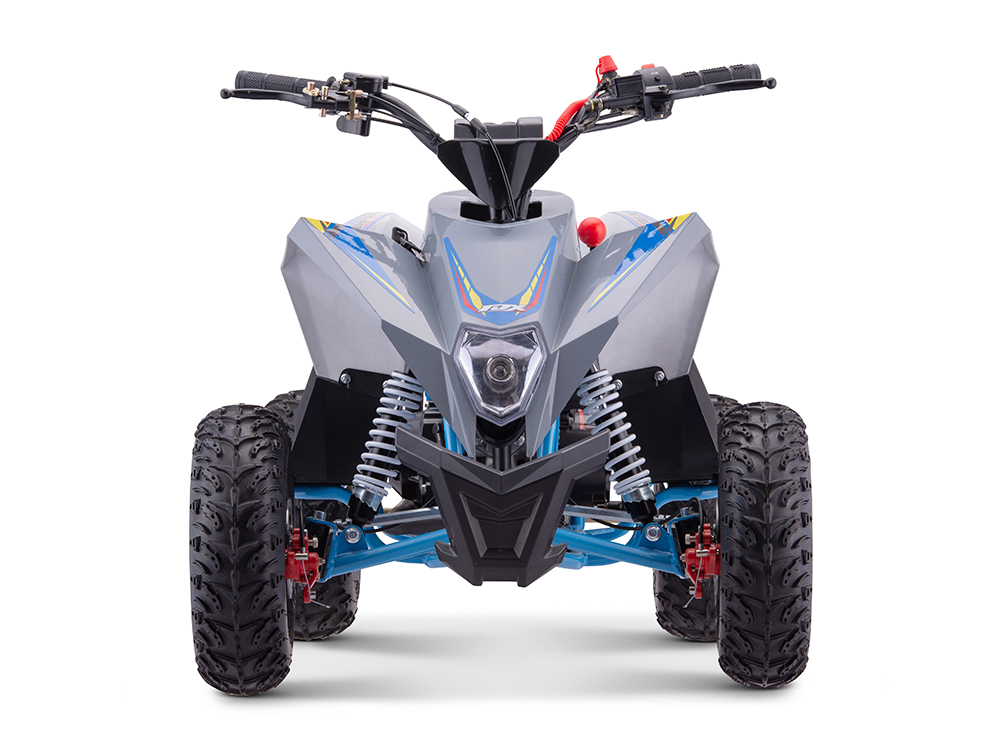

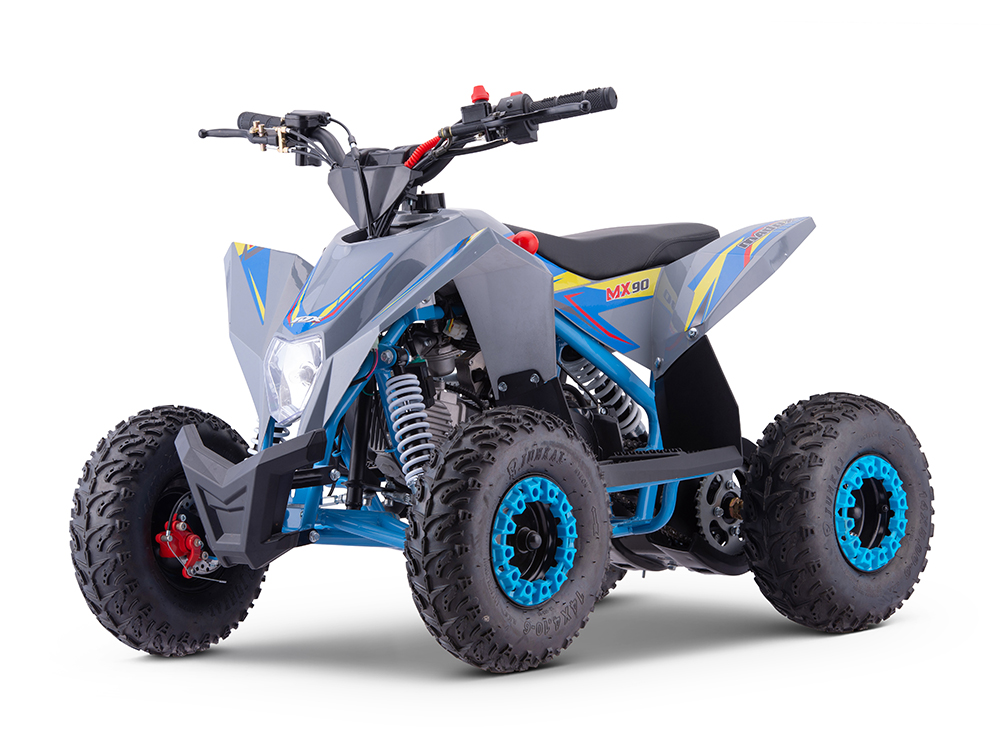

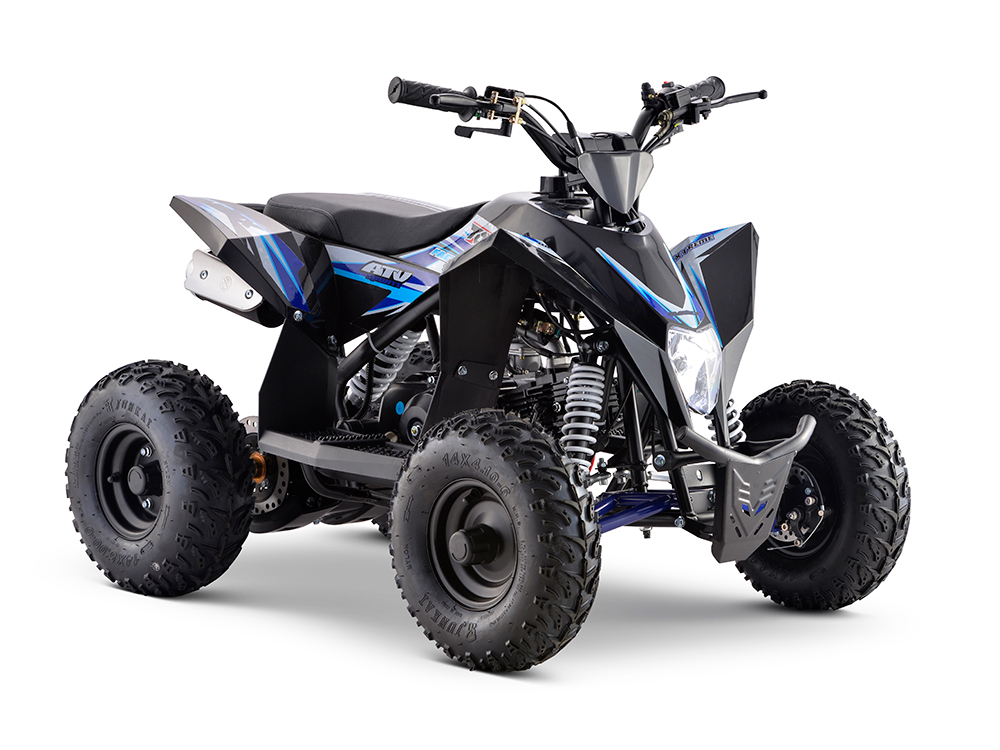

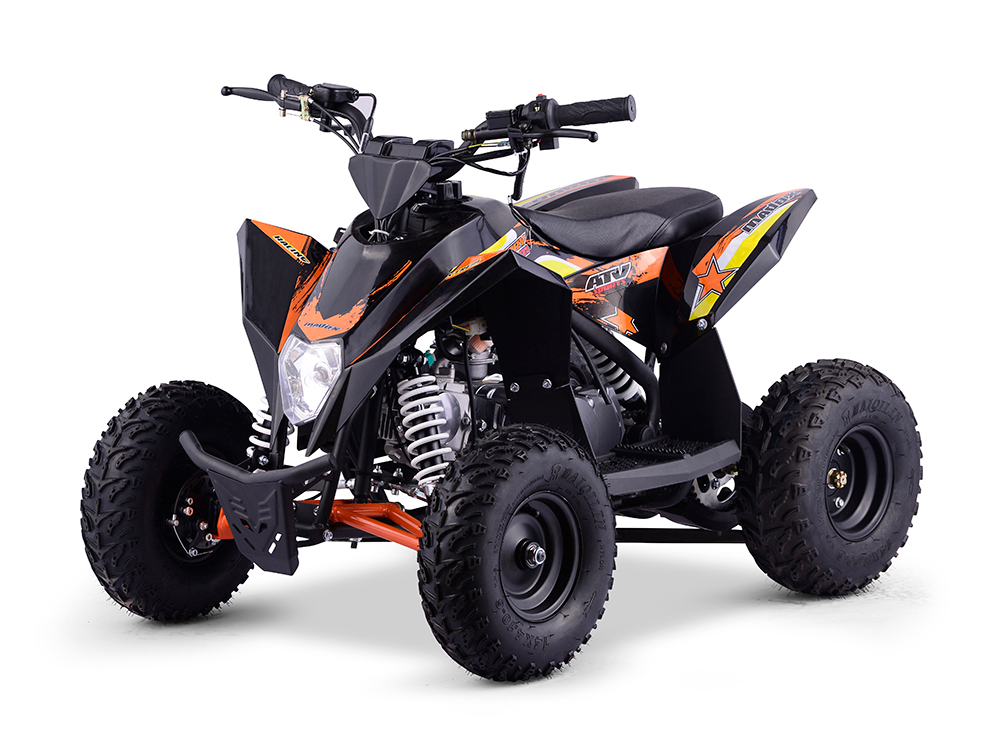

SA503
4-Stroke Gasoline ATV
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: sales@liya-moto.comContact: James Chan
Position: General manager
TEL: +86-579-87918576
Parameter
| Engine | 1 cylinder, 4 stroke, air cooled, 90cc |
| Dispacement | 86ml |
| Compression ratio | 8.8:1 |
| Max. power(kw/r/mim) | 3.3/7500±500 |
| Max. torque(N.m/r/min) | 4.1/6500±500 |
| Idle speed | (1500±100)r/min |
| Transmission | Chain drive with full auto clutch |
| Final drive | 14T / 37T, 420# chain |
| Starting system | electric start only |
| Ignition | C.D.I |
| Lubrication system | pressure splash |
| Engine oil volume | 0.9L |
| Battery | 12V 4Ah |
| Wheel & tires | high strength steel rim, 6" |
| Tire | front 14*4.10-6" , rear 14*5.00-6'' |
| Petrol tank volume | 1.5L |
| Max. speed | 50kmph |
| Max load capacity | 65kgs |

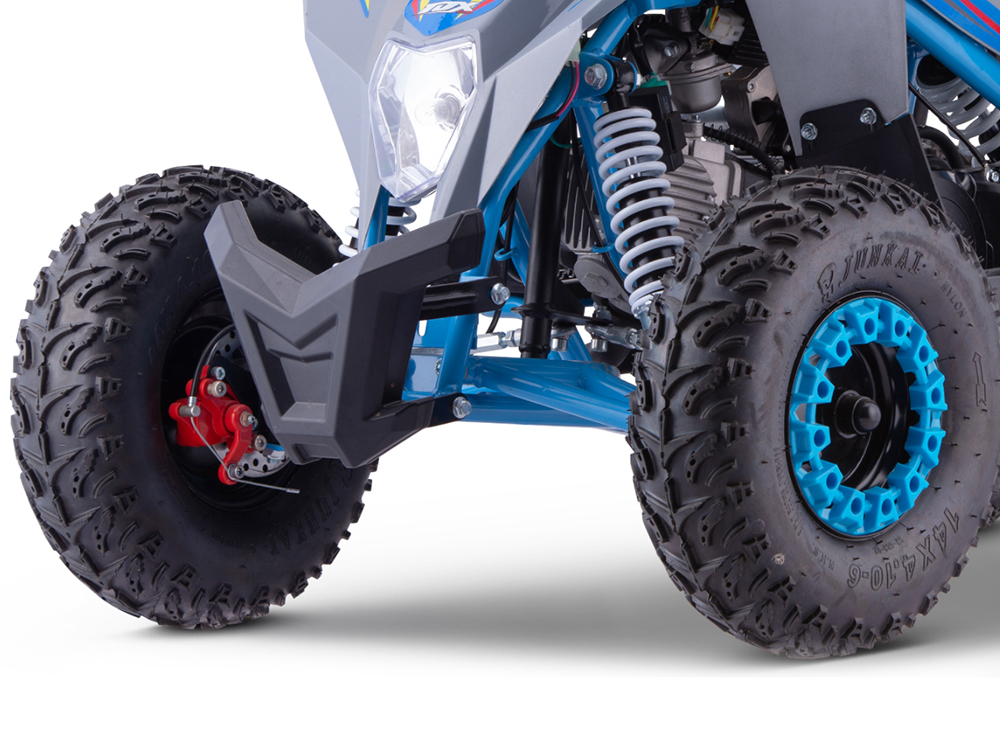

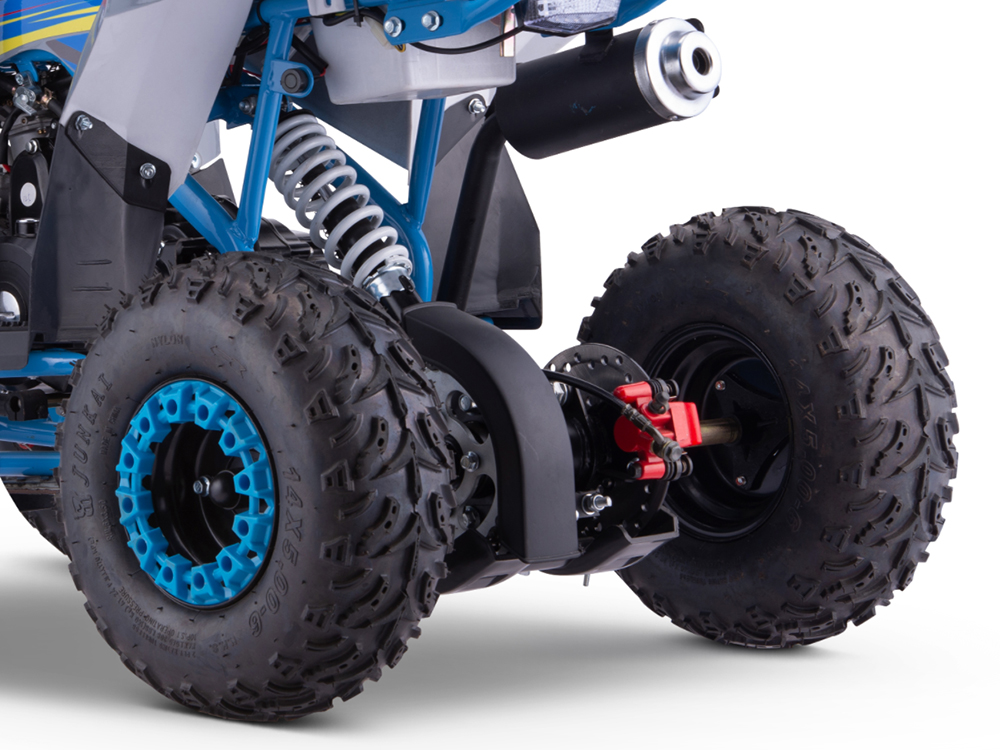

| Brake system | front mechanical disc brake / rear hydraulic brake |
| Suspension | front double A swing arm, rear mono shock |
| Dimension ( L*W*H) | 1150*720*760 mm |
| Wheelbase | 760mm |
| Seat height | 540mm |
| Min ground clearance | 180mm |
| Dry weight | 62kgs |
| Qty/container | 80pcs/ 20ft container, 200pcs/40HQ container |
