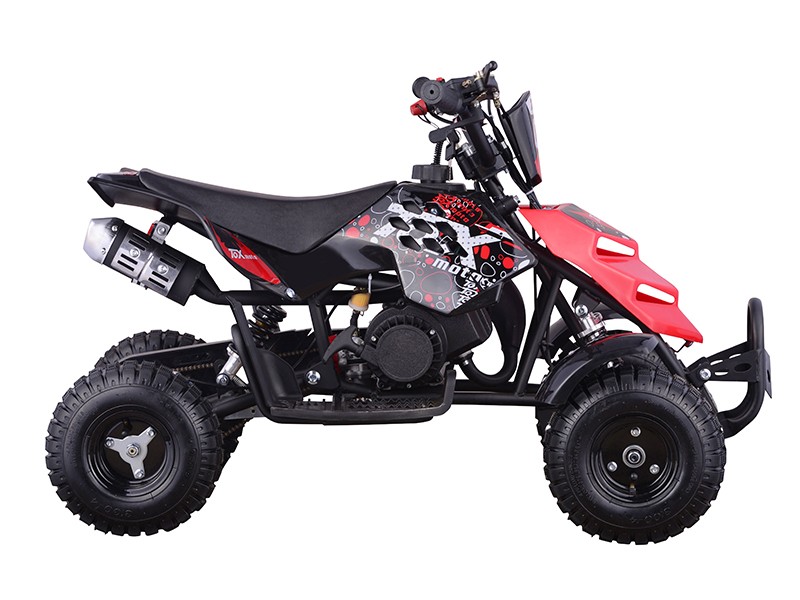

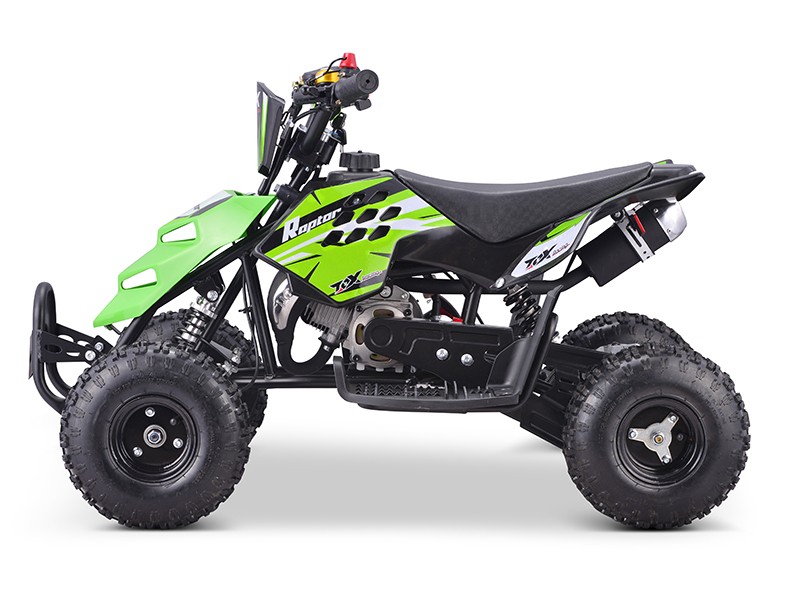

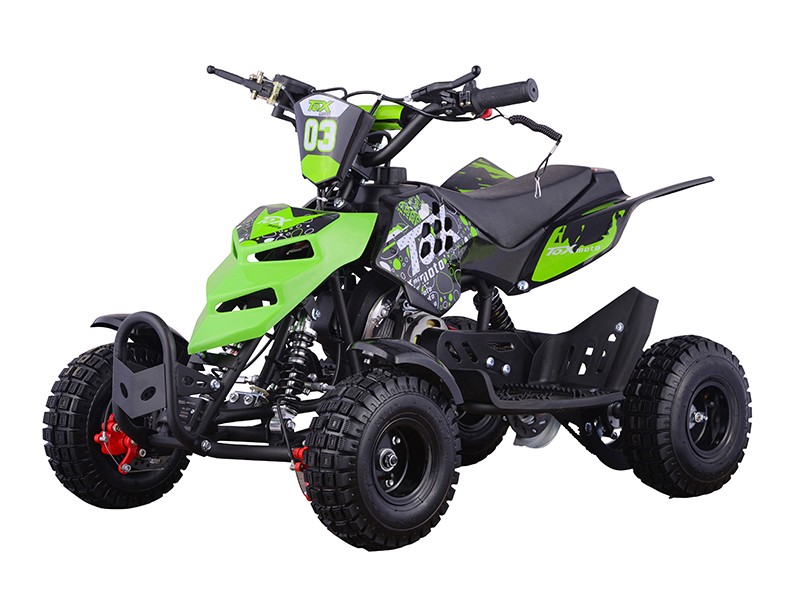

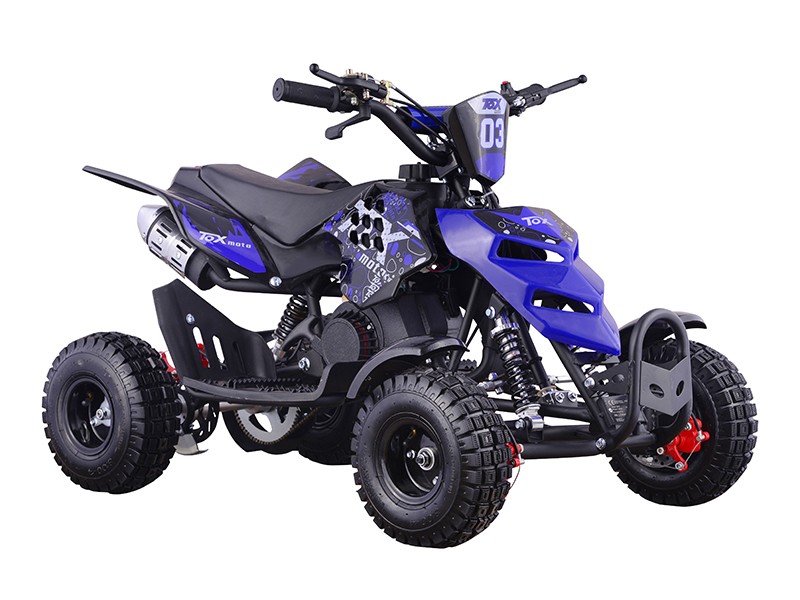

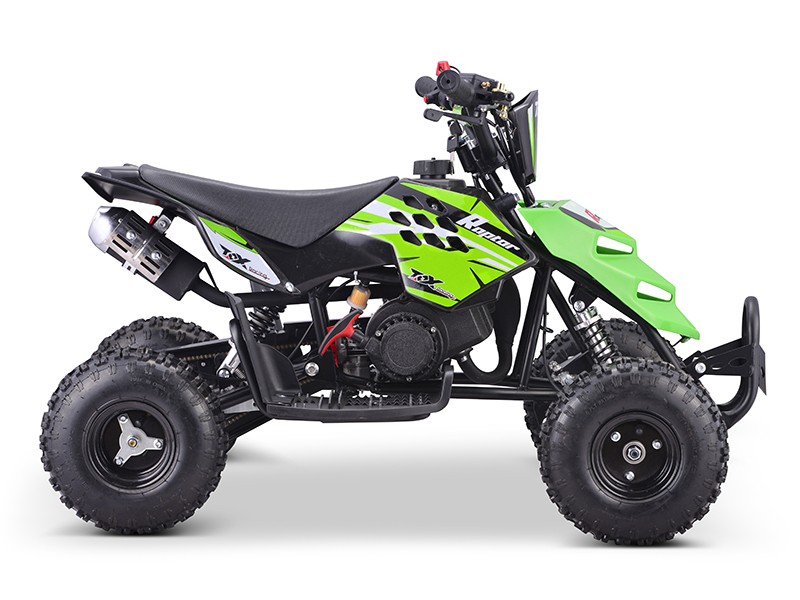

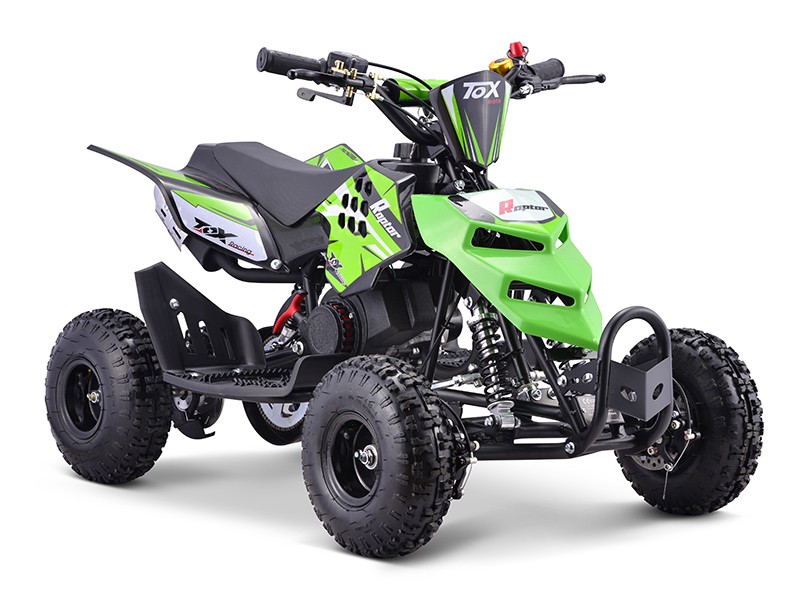

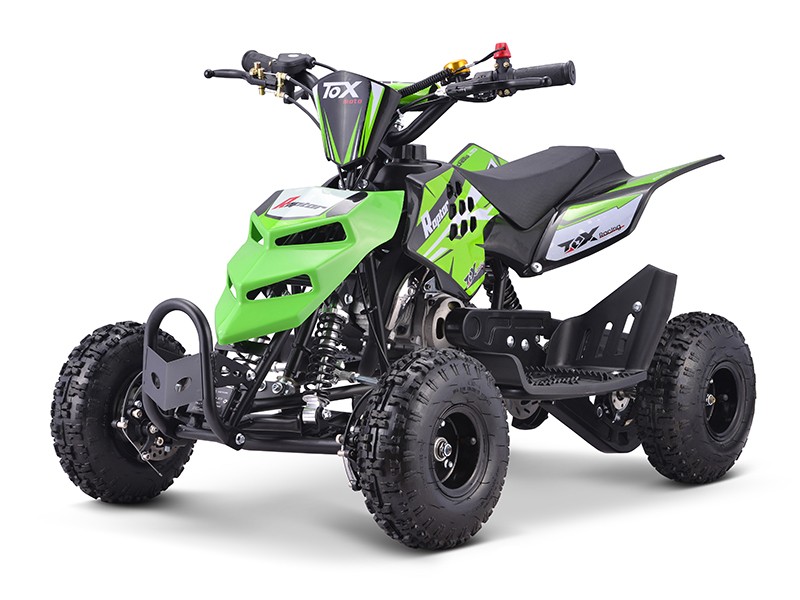

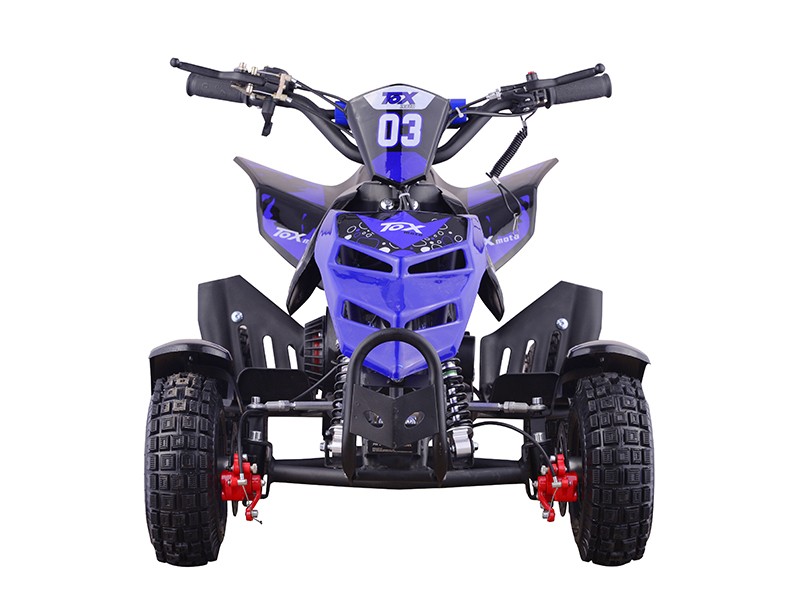

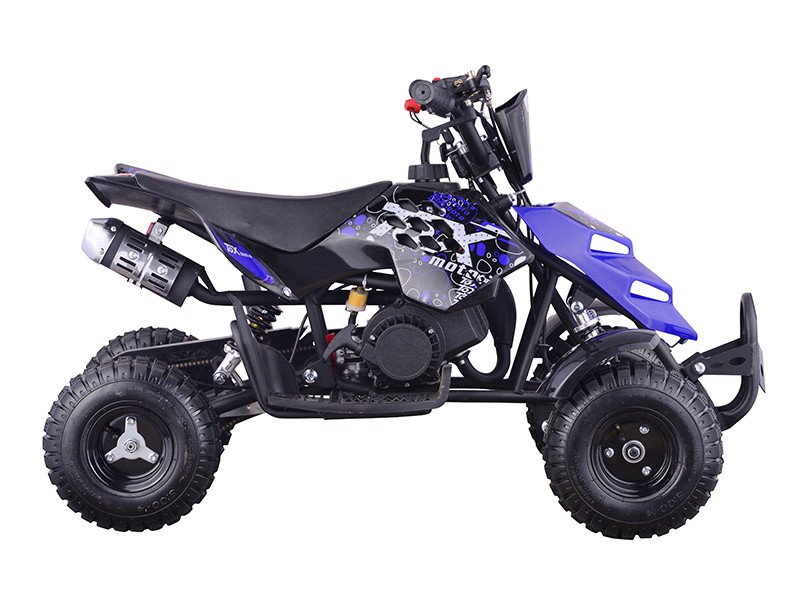

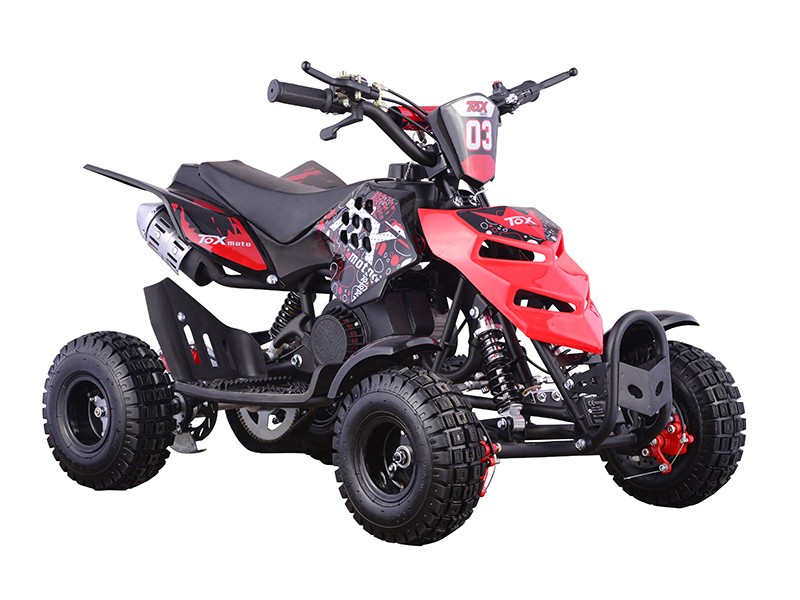

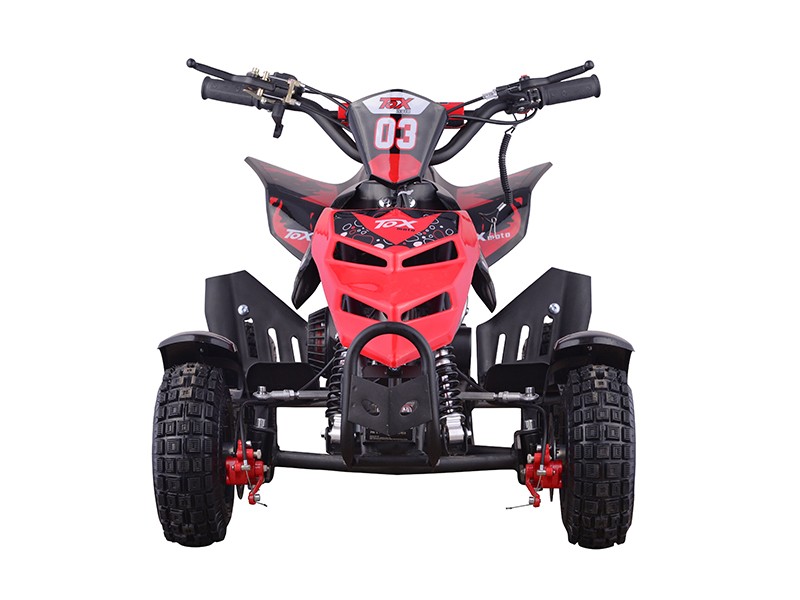

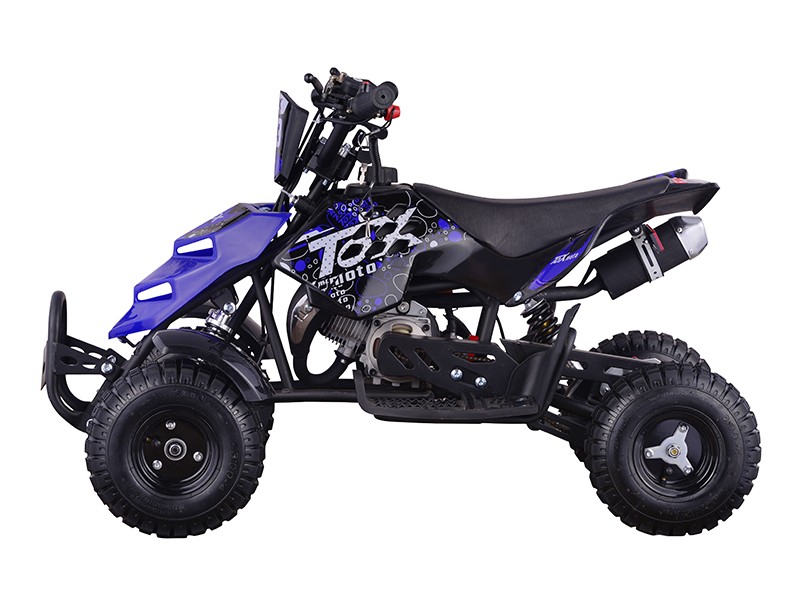

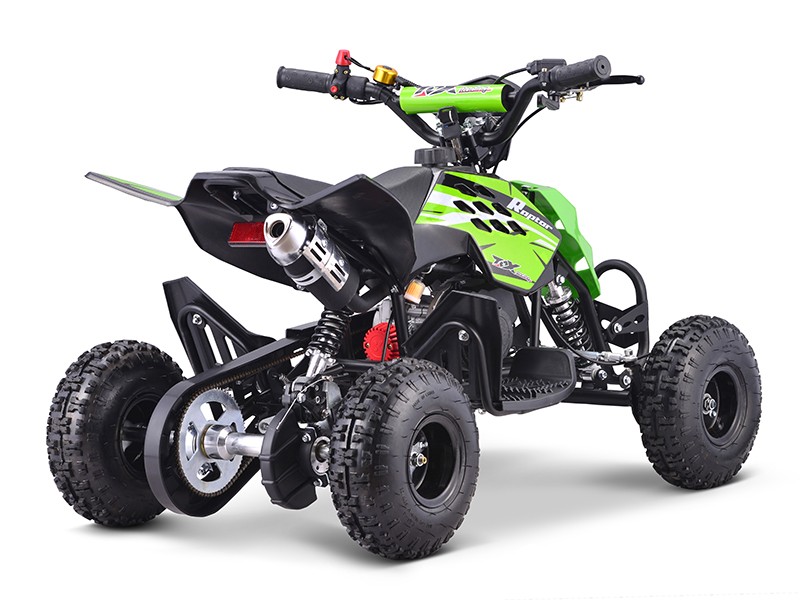

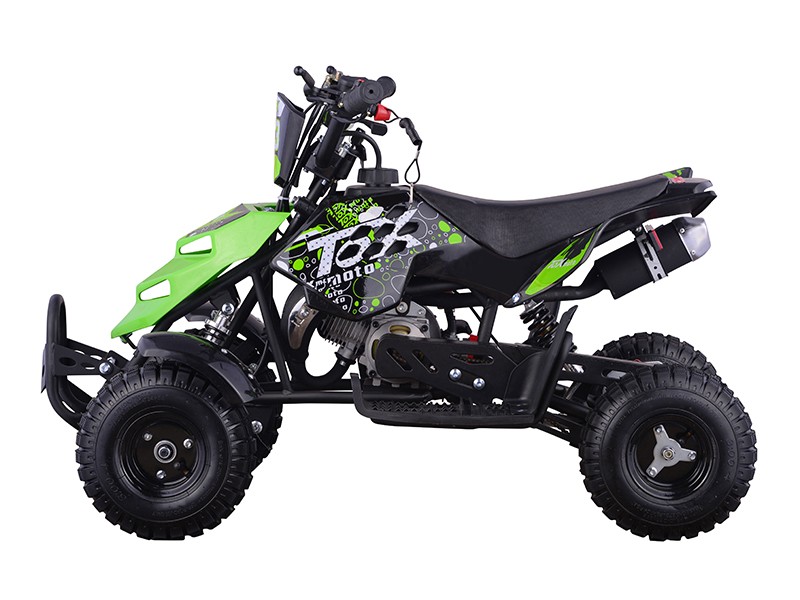

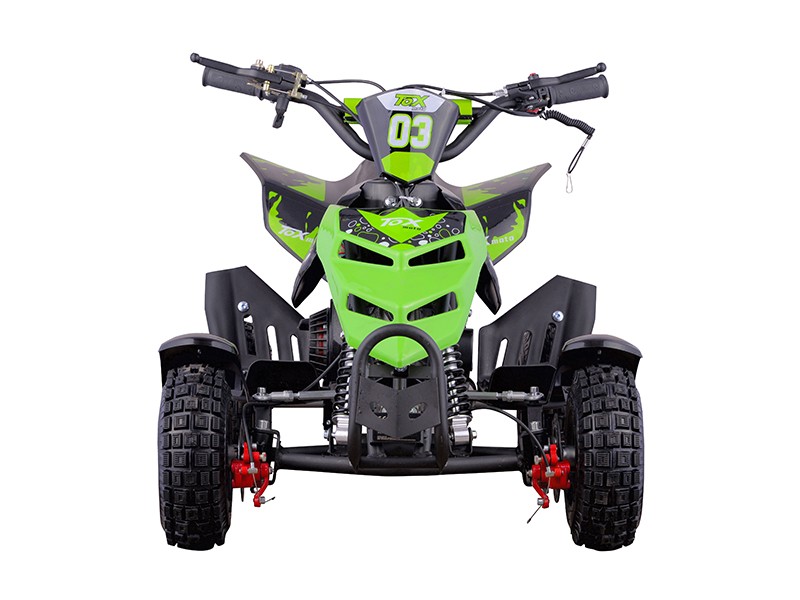

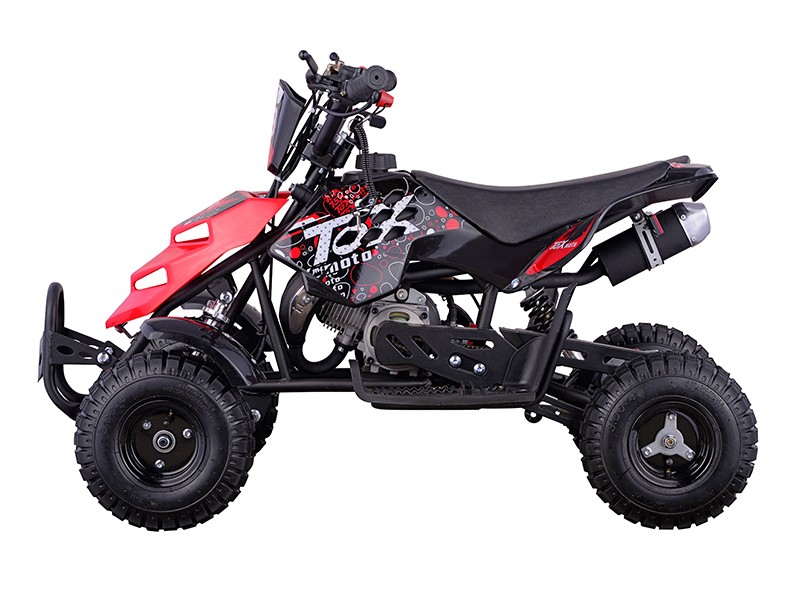

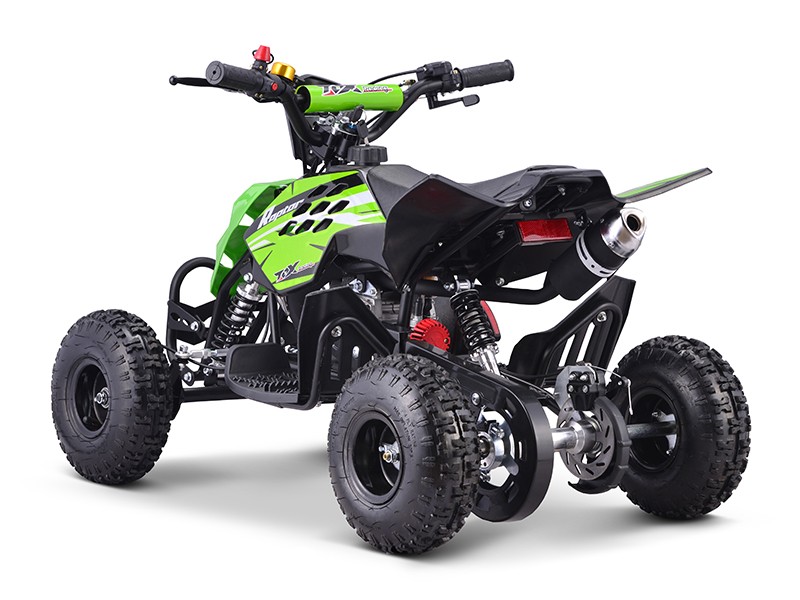

QD03

ATV


Engine49cc, 1 cylinder-2 stroke, air cooled
TransmissionChain drive, full auto clutch
Final Drive13T/54T, T8F# chain
Starting SystemManual pull start
OptionalElectric start with 12V4Ah battery
Fuel Tank Volume
1.5L
TiresFront 4.10-6'' and rear 13x5.00-6''
OptionalFront & Rear 3.00-4
Brake SystemFront 2 disc brakes and rear 1 disc brake
Suspension

Front double mechanical damper

Rear mono shock absorber

Max Speed40kmph
Max Load Capacity60kgs
Wheelbase690mm
Seat Height435mm
Min Ground Clearance55mm
Dry Weight32kgs
Carton Size

1005x620x425mm

QTY/Container-6'' Wheels

100pcs/20FT, 250pcs/40HQ

QTY/Container-4'' Wheels

105pcs/20FT, 258pcs/40HQ
