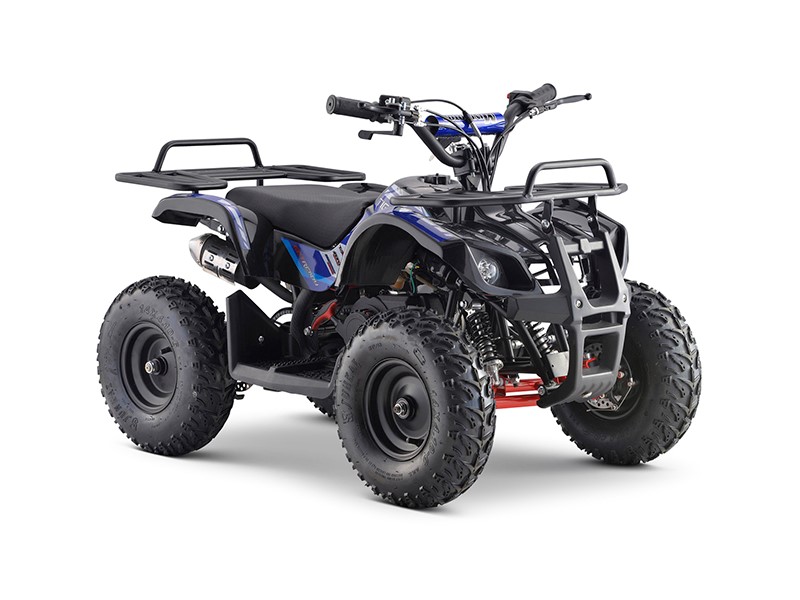

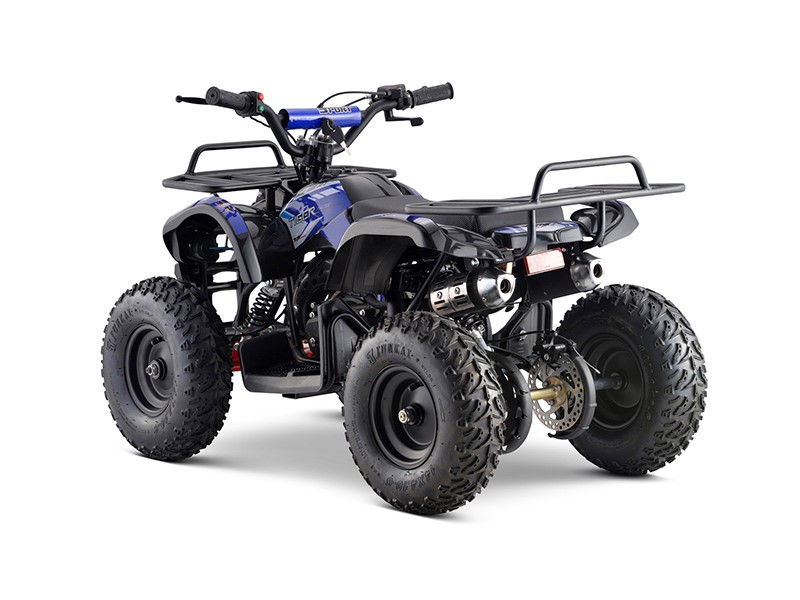

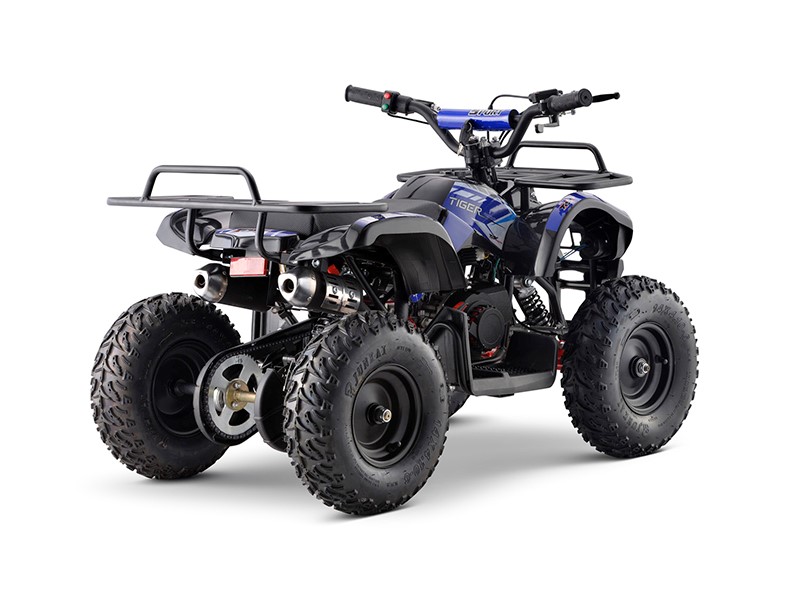

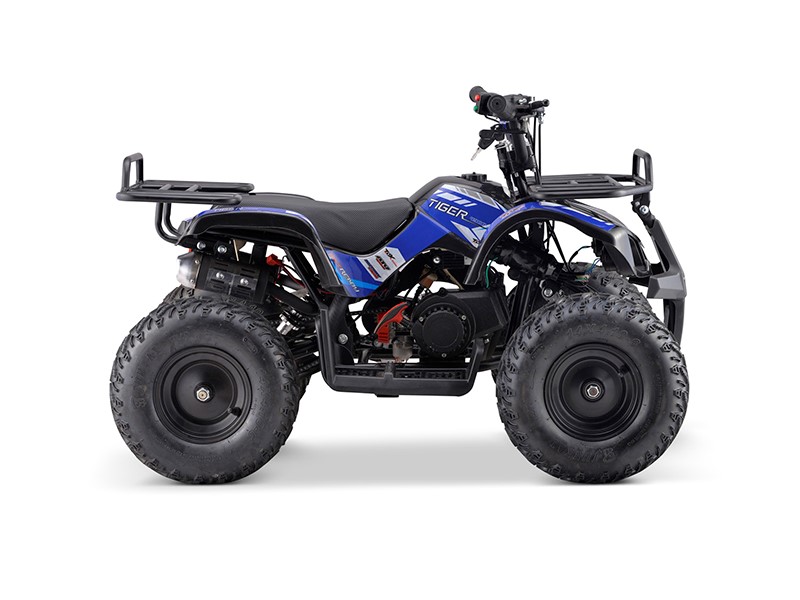

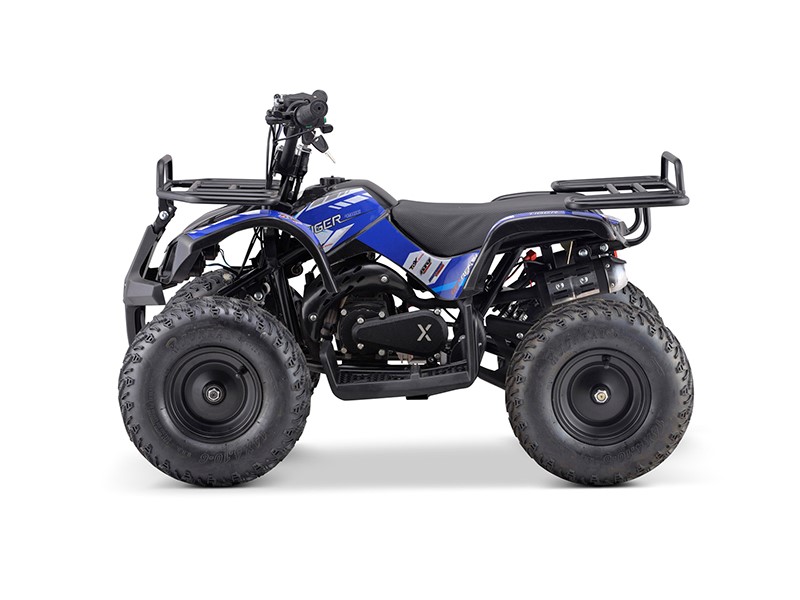

E-QD07Y

ELECTRIC ATV


Engine500W 36V electric motor
Optional800W 36V electric motor
Battery3x12V 12Ah lead acid battery
Optional36V 13Ah lithium battery
Charger43.2V-1.5Ah for 36V lead acid battery
Optional

42.0V-2.0Ah for 36V lithium batter

TransmissionChain drive, with reverse gear
Final Drive9T/72T, 25H# chain
TiresFront 4.10-6, rear 13.00x5.0-6
OptionalFront & Rear 3.00-4
Brake SystemFront 2 disc brake and rear 1 disc brake
Suspension

Front double mechanical damper, Rear mono shock absorber

Range Per Full Charge18km
Max Speed25km/h
Max Load Capacity60kgs
Wheelbase690mm
Seat Height450mm
Min Ground Clearance55mm
Dry Weight50kgs-36V with lead acid battery
Dry Weight42kgs-36V with lithium battery
Carton Size1020x630x430mm
QTY/Container100pcs/20FT, 245pcs/40HQ
