E-MD07 14/12

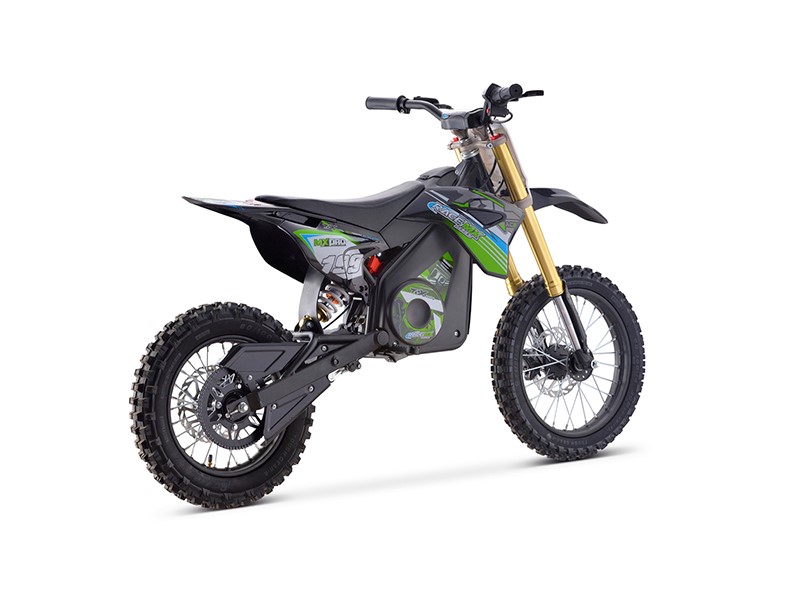

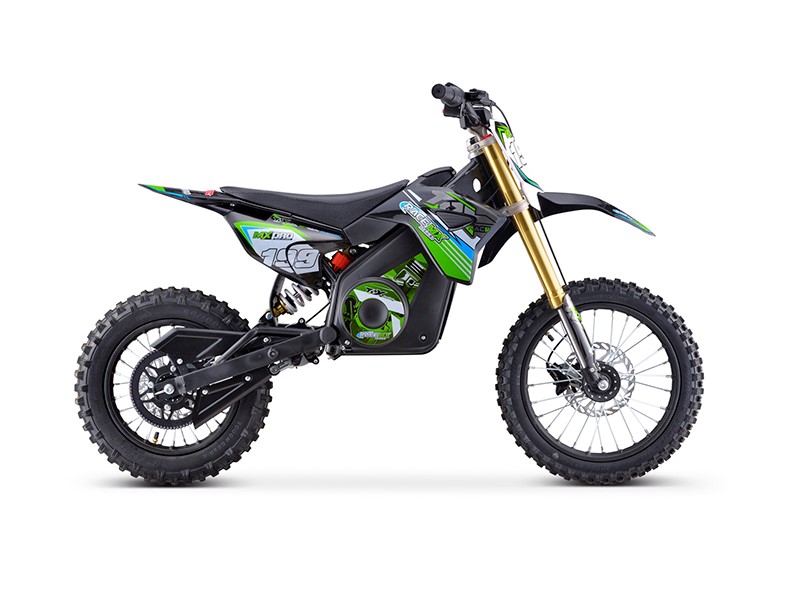

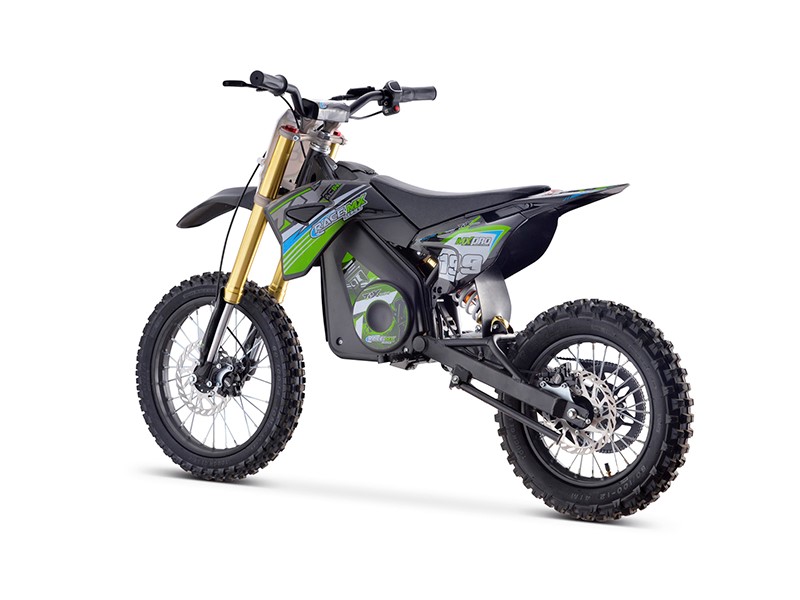

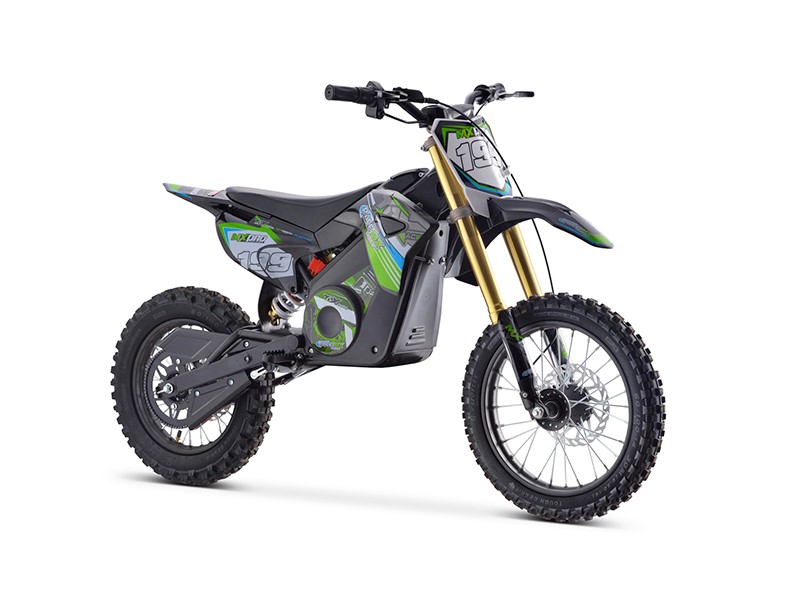

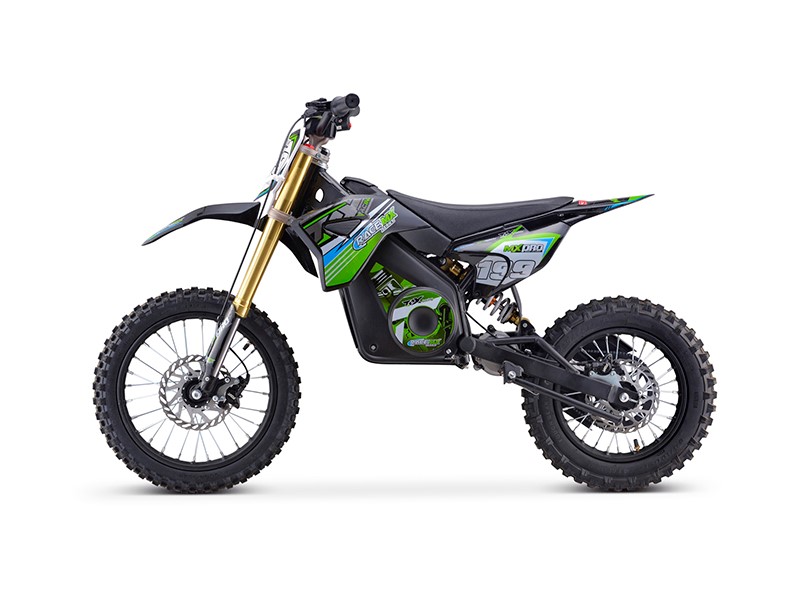

ELECTRIC MINI MOTO


Engine1100W 48V neodymium magnet BRUSHLESS motor
Optional1300W 48V neodymium magnet BRUSHLESS motor
Battery48V13AH lithium battery
Optional

48V 15AH lithium battery

Charger54.6V/2.0A
TransmissionChain drive, speed adjustable
Final Drive 11T/80T, 25H# chain
TiresFront 2.75-14", rear 3.00-12"
Brake SystemFront and rear disc brake
Suspension

Front inverted fork

Rear mono shock absorber

Range Per Full Charge24km
Max Speed38km/h
Max Load Capacity65kgs
Wheelbase1010mm
Seat Height680mm
Min Ground Clearance310mm
Dry Weight38kgs
Packing carton size1290*370*660mm

QTY/Container

75pcs/20ft, 216pcs/40HQ
